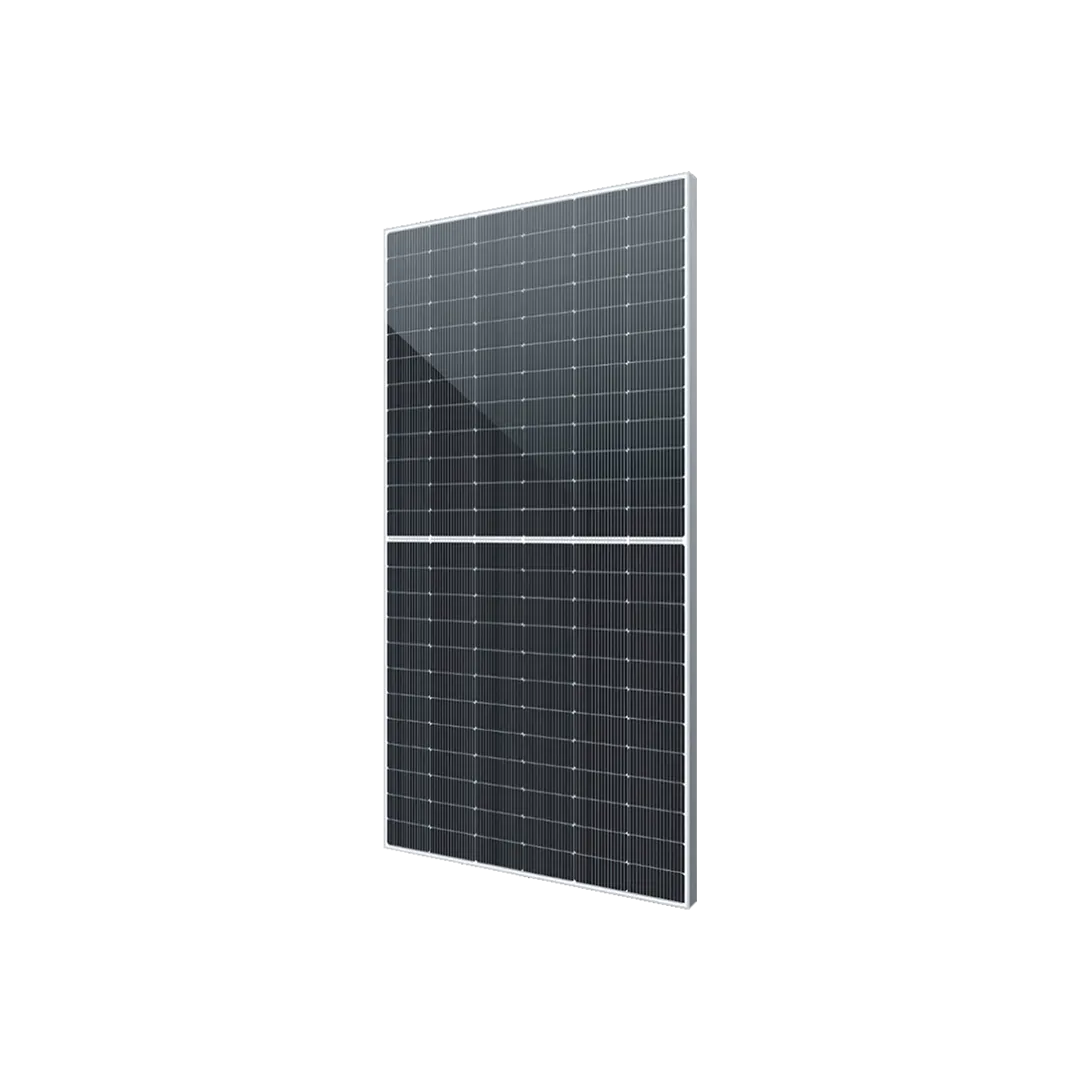

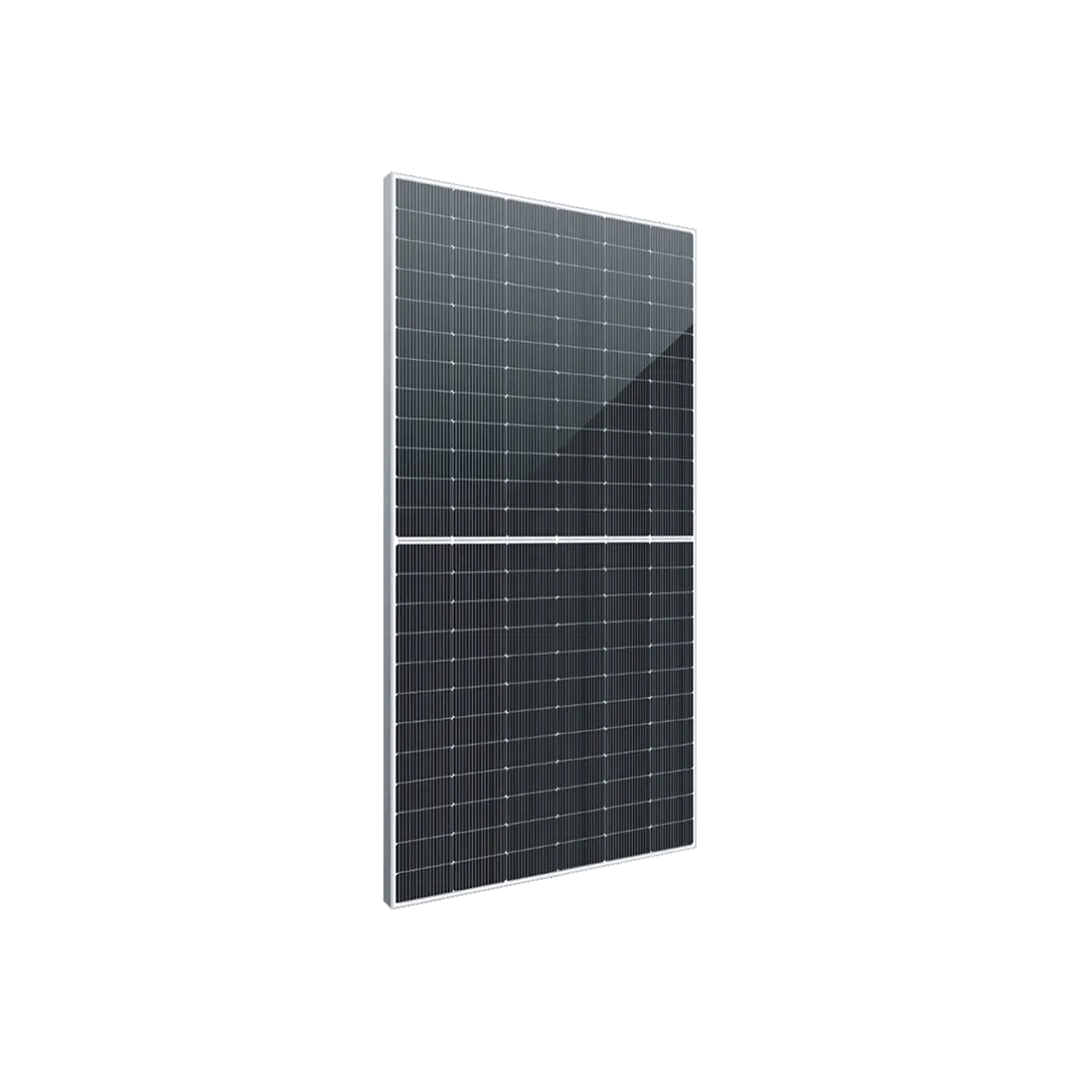

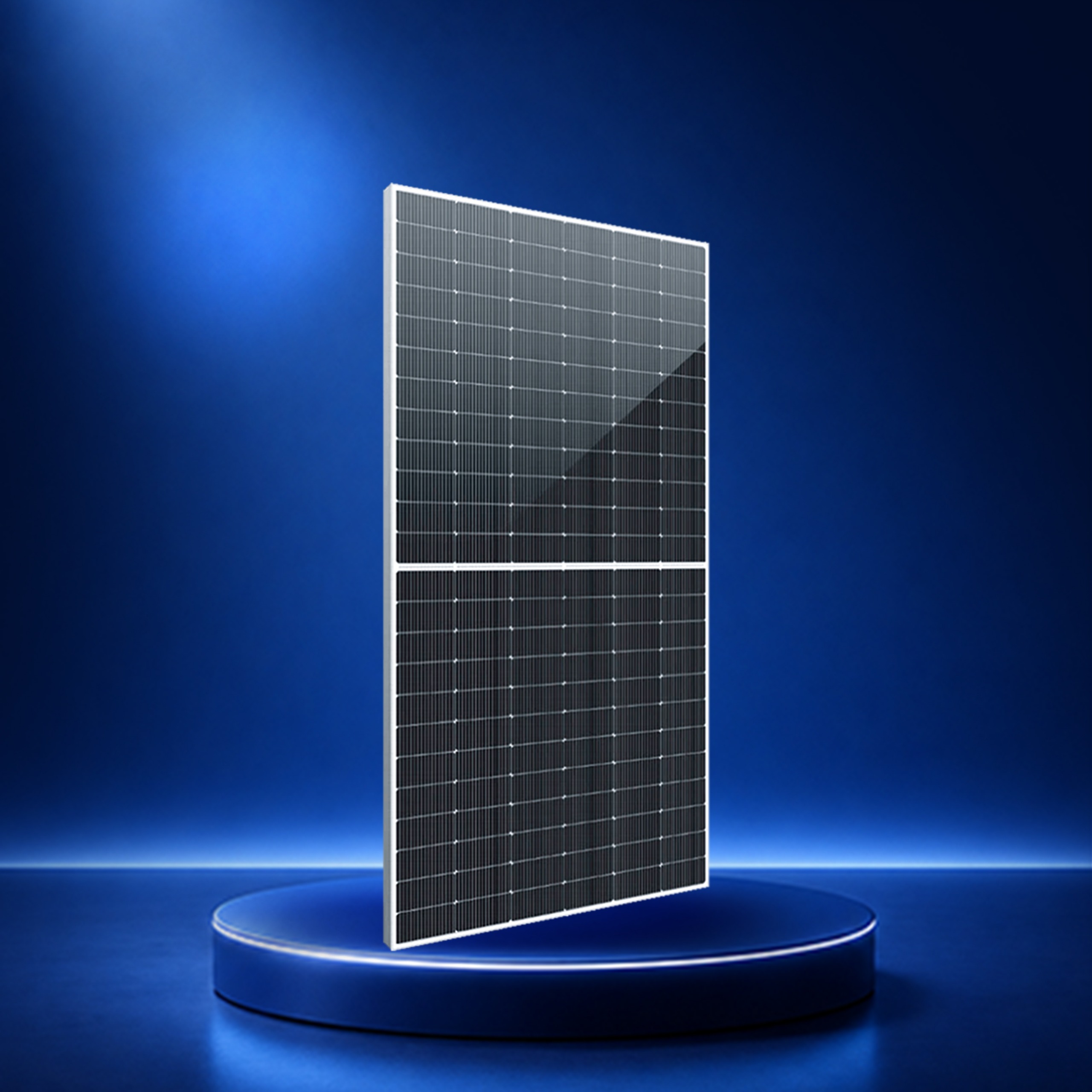

TOPCon Bifacial 585W (TE-585-N144M10)
Categories: TOPCON BIFICIAL SOLAR PANEL
The Triex TOPCon 585W is an N-Type mono-bifacial solar panel built for high-performance residential and commercial solar installations in Pakistan. Using Tunnel Oxide Passivated Contact technology, TOPCon cells achieve higher conversion efficiency and lower degradation rates than conventional PERC panels, delivering more energy from the same rooftop area over a longer period.
At 22.65% module efficiency, the TE-585-N144M10 extracts more power per square meter than most standard panels available in the Pakistani market. For homeowners with limited rooftop space, this means fewer panels are needed to achieve the same system capacity, reducing mounting costs and structural load on the roof.
The bifacial design captures sunlight from both the front and rear surfaces of the panel. On a standard white or reflective rooftop surface common in Pakistan, the rear gain adds up to 15% additional power generation without any additional panels. This means a 585W rated panel can deliver up to 678.5W under ideal bifacial conditions, effectively increasing the energy yield of the entire array at no additional hardware cost.
HOT 2.0 technology reduces Light Induced Degradation and Light and Elevated Temperature Induced Degradation, which are the primary causes of early power loss in solar panels. Standard PERC panels can lose 1 to 3% of their rated power in the first year from LID alone. HOT 2.0 minimizes this loss, keeping the panel closer to its rated output from day one throughout its service life.
The IP68 rated junction box protects the panel’s electrical connections from complete water immersion, making it well suited for Karachi’s monsoon season and the rooftop water pooling common in flat-roof Pakistani homes. The anodized aluminium alloy frame and heat-strengthened back glass provide structural integrity against the 2400Pa wind load and 5400Pa snow load certifications, covering Pakistan’s range of weather conditions from coastal Karachi to northern areas.
TUV Rheinland, CEC, CE, ISO, and multiple additional certifications confirm that the panel meets international quality and safety standards, an important consideration for NEPRA net metering applications where certified equipment is required.
Product Description
Key Features
- 585W Rated Output: High power output per panel reduces the total number of panels needed for your target system capacity
- 22.65% Module Efficiency: Among the highest efficiency ratings available in the Pakistani solar market, maximizing energy generation from limited rooftop space
- N-Type TOPCon Technology: Tunnel Oxide Passivated Contact cells deliver higher efficiency and lower long-term degradation than conventional PERC technology
- Bifacial Design with Up to 15% Rear Gain: Captures sunlight from both front and rear surfaces, reaching up to 678.5W maximum power under bifacial conditions
- HOT 2.0 Technology: Reduces Light Induced Degradation and LETID, keeping panel output closer to rated capacity from day one and throughout the panel’s service life
- SMBB Technology: Super Multi Busbar design reduces current path length, minimizes cell shading, and improves overall power output
- PID Resistance: Potential Induced Degradation resistance ensures long-term reliability in high-voltage string configurations
- IP68 Rated Junction Box: Complete waterproof protection for electrical connections, suitable for Karachi’s monsoon conditions and rooftop water exposure
- Anti-Reflective Coating Glass: 2.0mm front glass with anti-reflective coating captures more light across a wider angle of incidence, improving early morning and late afternoon generation
- 2400Pa Wind and 5400Pa Snow Load Certified: Structural certification covering Pakistan’s range of weather conditions from coastal to northern regions
- Operating Temperature Range -40°C to +85°C: Handles Pakistan’s extreme summer rooftop temperatures and winter cold without structural or electrical damage
- Low Temperature Coefficient of Pmax at -0.29%/°C: Minimizes power loss in high-temperature conditions, important for Pakistan’s summer months when rooftop temperatures exceed 50°C
- TUV Rheinland Certified: Internationally recognized quality and safety certification, accepted for NEPRA net metering applications
Technical Specifications
Electrical Parameters (STC)
| Specification | TE-585-N144M10 |
|---|---|
| Maximum Power (Pmax) | 585W |
| Maximum Power Voltage (Vmp) | 44.22V |
| Maximum Power Current (Imp) | 13.23A |
| Open Circuit Voltage (Voc) | 52.16V |
| Short Circuit Current (Isc) | 13.89A |
| Module Efficiency | 22.65% |
| Power Tolerance | 0 to +3% |
Electrical Parameters (NOCT)
| Specification | TE-585-N144M10 |
|---|---|
| Maximum Power (W) | 435.8W |
| Maximum Power Voltage (V) | 40.92V |
| Maximum Power Current (A) | 10.65A |
| Open Circuit Voltage (V) | 48.27V |
| Short Circuit Current (A) | 11.18A |
Backside Power Gain (Bifacial)
| Specification | TE-585-N144M10 |
|---|---|
| Backside Power Gain | 15% |
| Maximum Power (Pmax) | 678.5W |
| Open Circuit Voltage (Voc) | 52.37V |
| Short Circuit Current (Isc) | 16.06A |
| Maximum Power Voltage (Vmp) | 44.43V |
| Maximum Power Current (Imp) | 15.27A |
Mechanical Parameters
| Specification | TE-585-N144M10 |
|---|---|
| Cell Type | 182 x 91mm N-Type |
| Number of Cells | 144 cells (2 x 72) |
| Dimensions | 2278 x 1134 x 30mm |
| Weight | 30 kg |
| Front Glass | 2.0mm Anti-Reflection Coating |
| Back Glass | 2.0mm Heat Strengthened |
| Frame | Composite, Steel, or Anodized Aluminium Alloy |
| Junction Box | IP68 Rated, MC4 Compatible |
| Output Cable | 4mm², 300mm Standard |
Temperature Coefficient
| Specification | TE-585-N144M10 |
|---|---|
| NOCT | 45 plus or minus 2°C |
| Temperature Coefficient of Isc | 0.045%/°C |
| Temperature Coefficient of Voc | -0.25%/°C |
| Temperature Coefficient of Pmax | -0.29%/°C |
Application Parameters
| Specification | TE-585-N144M10 |
|---|---|
| Operational Temperature | -40°C to +85°C |
| Maximum System Voltage | 1500V DC |
| Max Series Fuse Rating | 25A |
| Wind Load | 2400Pa |
| Snow Load | 5400Pa |
| Packaging | 36 PCS/PLT, 720 PCS/40HQ |
Who Should Buy This
The TE-585-N144M10 585W TOPCon panel is the right choice for Pakistani homeowners and businesses who want maximum energy generation from their available rooftop space. It is ideal for homes with limited roof area where standard 400W to 500W panels would require more panels to reach the target system capacity, and for buyers who want lower long-term degradation and higher reliability over a 25 to 30 year panel lifespan.
It is particularly well suited for K-Electric net metering applications in Karachi and NEPRA net metering installations across Pakistan where certified high-efficiency panels deliver better return on investment through higher energy yields.
Certifications
TUV Rheinland, CEC, CE, INMETRO, PV CYCLE, ISO, Bureau of Indian Standards
Warranty
Contact Triex Solar Team for product and performance warranty details.
