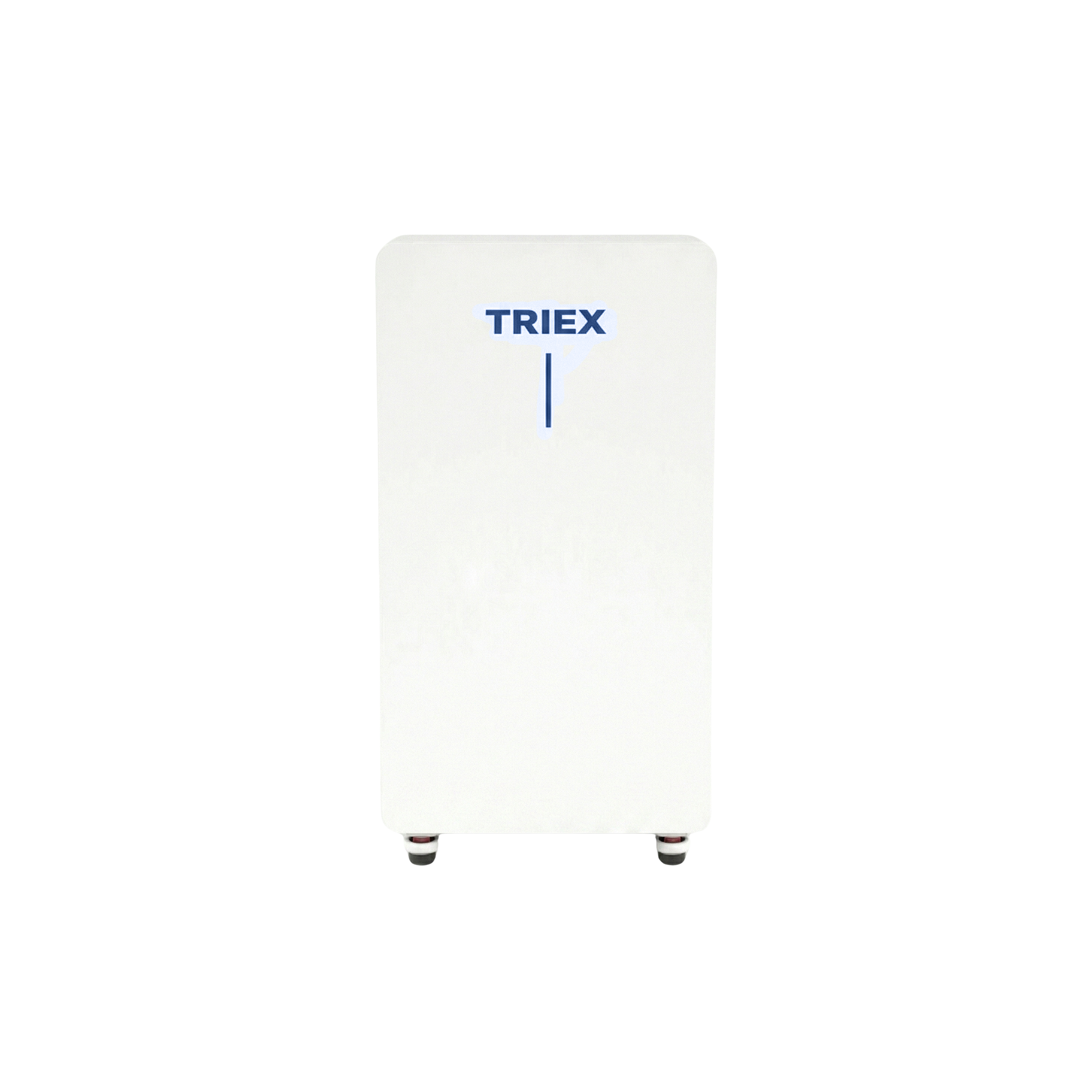

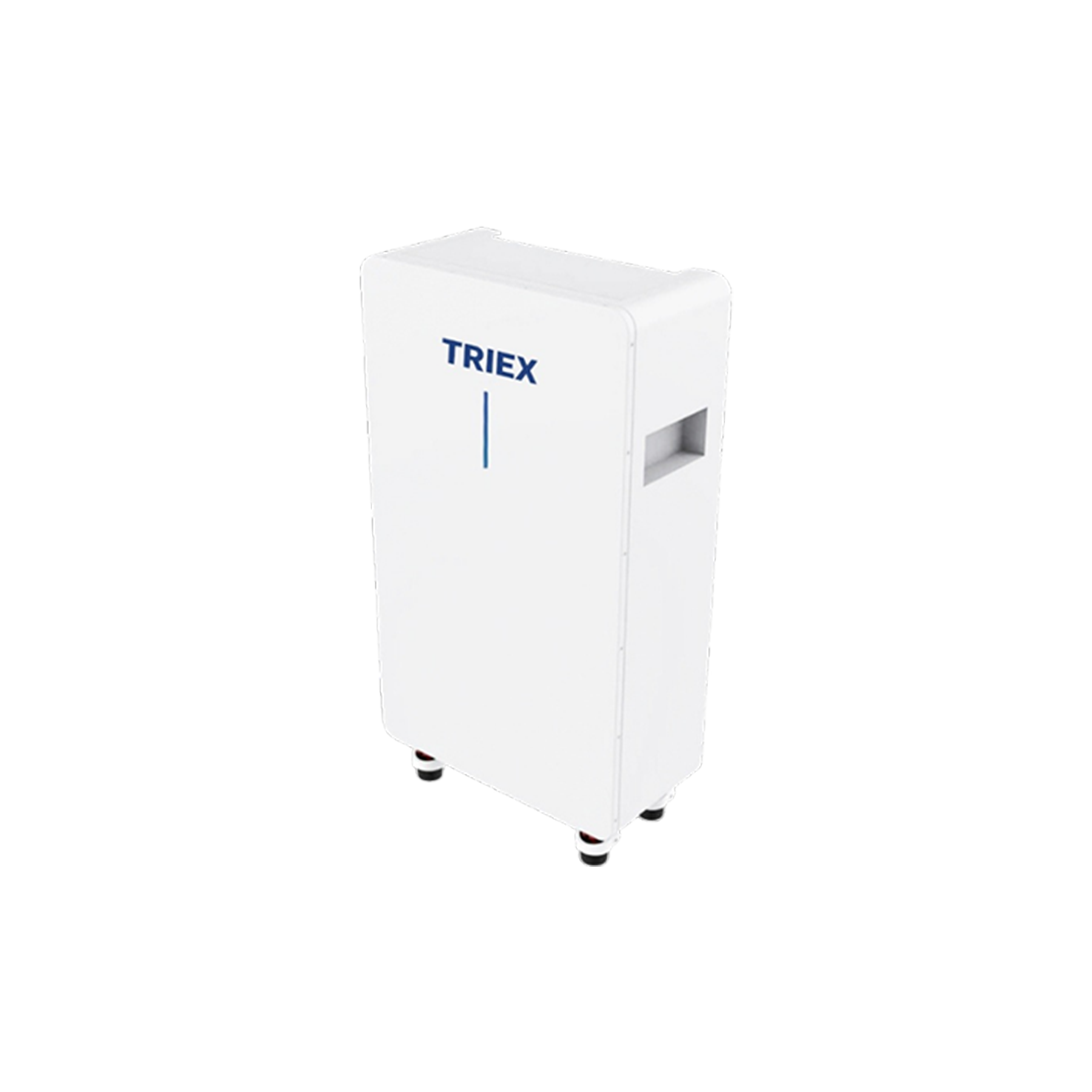

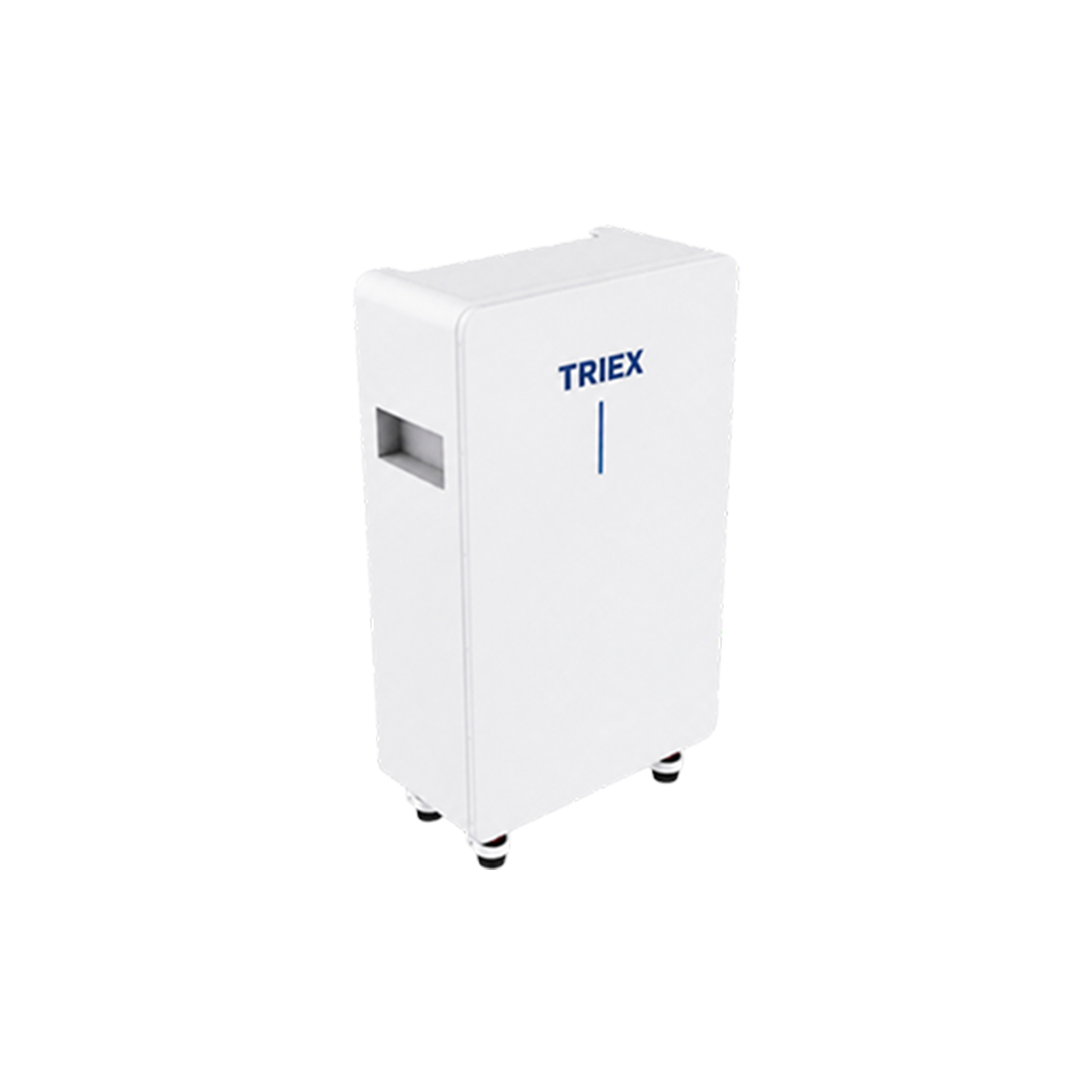

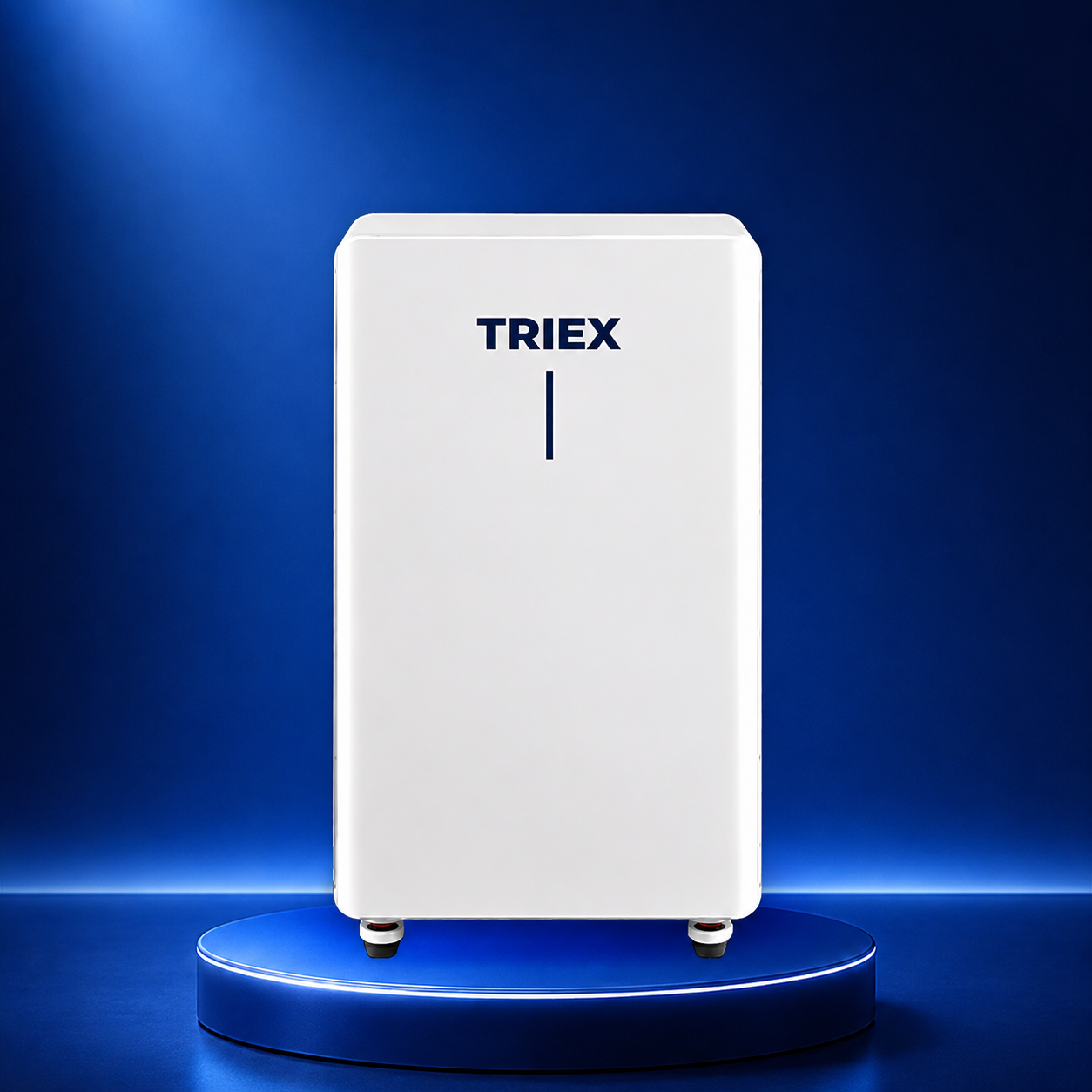

TXL-16.07 LOW VOLTAGE BATTERY
Categories: LITHIUM ION BATTERIES
The Triex TXL-16.07 is a 16kWh floor-mounted LiFePO4 lithium battery designed for residential and small commercial hybrid solar systems in Pakistan. Built on LFP 3.2V 314Ah cells in a 16S1P configuration, it delivers 15.27kWh of usable energy at 90% depth of discharge, giving Pakistani homes reliable backup power through even the longest WAPDA and K-Electric outages.
With a cycle life of 8000 or more at 70% end of life and 90% depth of discharge, the TXL-16.07 outlasts lead-acid batteries by 5 to 8 times under Pakistan’s real-world daily cycling conditions. A family that charges and discharges this battery once every day can expect over 21 years of service life, making it one of the most cost-effective long-term energy storage investments available in the Pakistani market today.
The built-in advanced Battery Management System monitors cell voltage, temperature, current, and state of charge in real time. It communicates with compatible hybrid inverters through CAN, RS485, and RS232, enabling fully automatic charge and discharge management without any manual intervention. Up to 16 units can be connected in parallel, scaling the storage capacity to 256kWh for larger commercial installations.
Product Description
Key Features
- 16.07kWh Rated Energy: 15.27kWh of usable capacity at 90% depth of discharge, enough to run a medium Pakistani home through 8 to 10 hours of load shedding
- 8000+ Cycle Life: At one cycle per day, this battery lasts over 21 years, eliminating the repeat replacement cost of lead-acid batteries
- LiFePO4 Chemistry: Lithium iron phosphate cells deliver superior thermal stability, no risk of thermal runaway, and consistent performance in Pakistan’s high ambient temperatures
- 90% Depth of Discharge: Safely use 90% of stored capacity daily without accelerating battery degradation
- Advanced BMS: Built-in Battery Management System handles overcharge protection, over-discharge cutoff, short circuit protection, and temperature management automatically
- Multi-Protocol Communication: CAN, RS485, and RS232 ports ensure seamless integration with compatible hybrid inverters for automatic charge and discharge control
- Up to 16 Units in Parallel: Scale storage capacity from 16kWh to 256kWh by connecting multiple units, suitable for larger homes or small commercial setups
- Floor Mounted Design: Stable floor-standing installation with no wall load, suitable for utility rooms, garages, and covered outdoor areas
- 51.2V Nominal Voltage: Compatible with all 48V system hybrid inverters including Triex IP66 6kW, IP66 8kW, Ultra-Max 8kW, and Ultra-Max 11kW models
- Wide Operating Temperature: Charge from 0 to 55°C, discharge from -20 to 55°C, handles Pakistan’s extreme summer and winter conditions
- 5 Year Warranty: 5 years product warranty and 5 years service warranty backed by Triex Solar Team
- CE and UN38.3 Certified: Meets international safety and transport standards for lithium battery systems
Technical Specifications
| Specification | TXL-16.07 |
|---|---|
| Cell Model | LFP 3.2V 314Ah |
| Combination Mode | 16S1P |
| Rated Energy | 16.07kWh |
| Usable Energy (90% DOD) | 15.27kWh |
| Rated Capacity | 314Ah at 0.6C, 25°C |
| Rated Voltage | 51.2V |
| Voltage Range | 43.2V to 57.6V |
| Rated Charge/Discharge Current | 157A |
| Max Charge/Discharge Current | 200A |
| Recommended Charge/Discharge | 50A |
| Cycle Life | 8000+ cycles at 70% EOL, 90% DOD |
| Depth of Discharge | 90% |
| Charge Temperature | 0°C to 55°C |
| Discharge Temperature | -20°C to 55°C |
| Storage Conditions | 3 months at -20 to 45°C, 6 months at 0 to 35°C |
| Relative Humidity | 5% to 95% |
| Altitude | Up to 4000m |
| Protection Grade | IP20 |
| Installation Mode | Floor Mounted |
| Max Parallel Units | 16 |
| Communication | CAN, RS485, RS232 |
| Firefighting (Optional) | Aerosol |
| Dimensions (W x H x D) | 500 x 920 x 250mm |
| Weight | 122 kg |
| Certifications | CE, UN38.3 |
Who Should Buy This
The TXL-16.07 is the right choice for Pakistani homeowners and small business owners who want a long-term, low-maintenance energy storage solution for their hybrid solar system. It is ideal for homes in Karachi, Lahore, and other cities with 6 to 12 hours of daily load shedding that need enough stored energy to run fans, lights, refrigerator, and one or two inverter ACs through extended outages.
If you are upgrading from lead-acid batteries and want to eliminate repeat replacement costs, or if you are building a new solar system and want storage that lasts as long as your solar panels, the TXL-16.07 is the most practical high-capacity option in the Triex battery lineup.
Compatibility
The TXL-16.07 operates at 51.2V nominal voltage and is compatible with all 48V system hybrid inverters. Confirmed compatible Triex models include:
- Triex IP66 6kW PV12000
- Triex IP66 8kW PV16000
- Axpert Ultra-Max 8kW PV10000
- Axpert Ultra-Max 11kW PV12000
- InfiniSolar V IV 6kW PV7000
Not compatible with the Axpert VM IV 4kW PV5000, which uses a 24V battery system.
Warranty
5 years product warranty plus 5 years service warranty. Contact Triex Solar Team for warranty registration and after-sales support.
