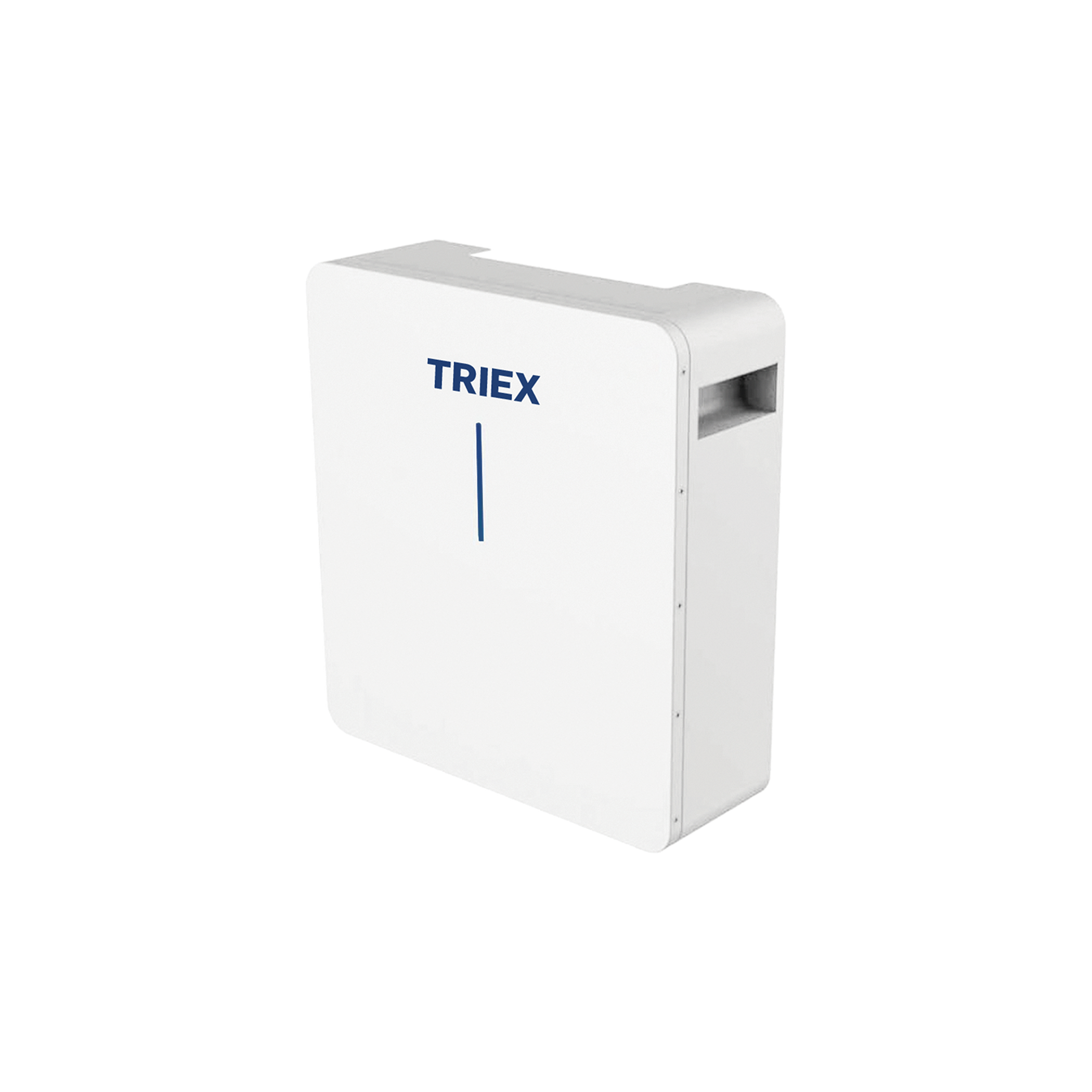

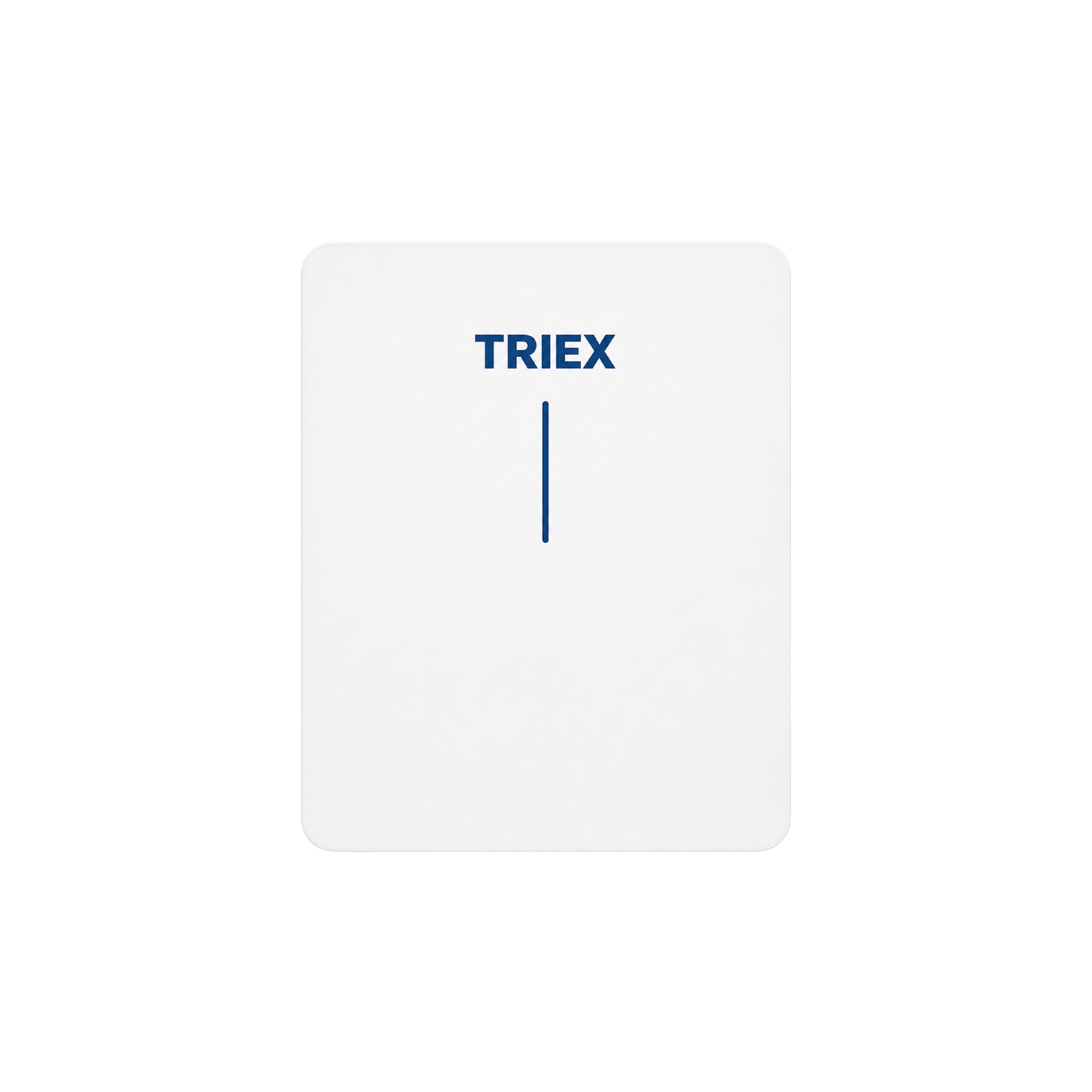

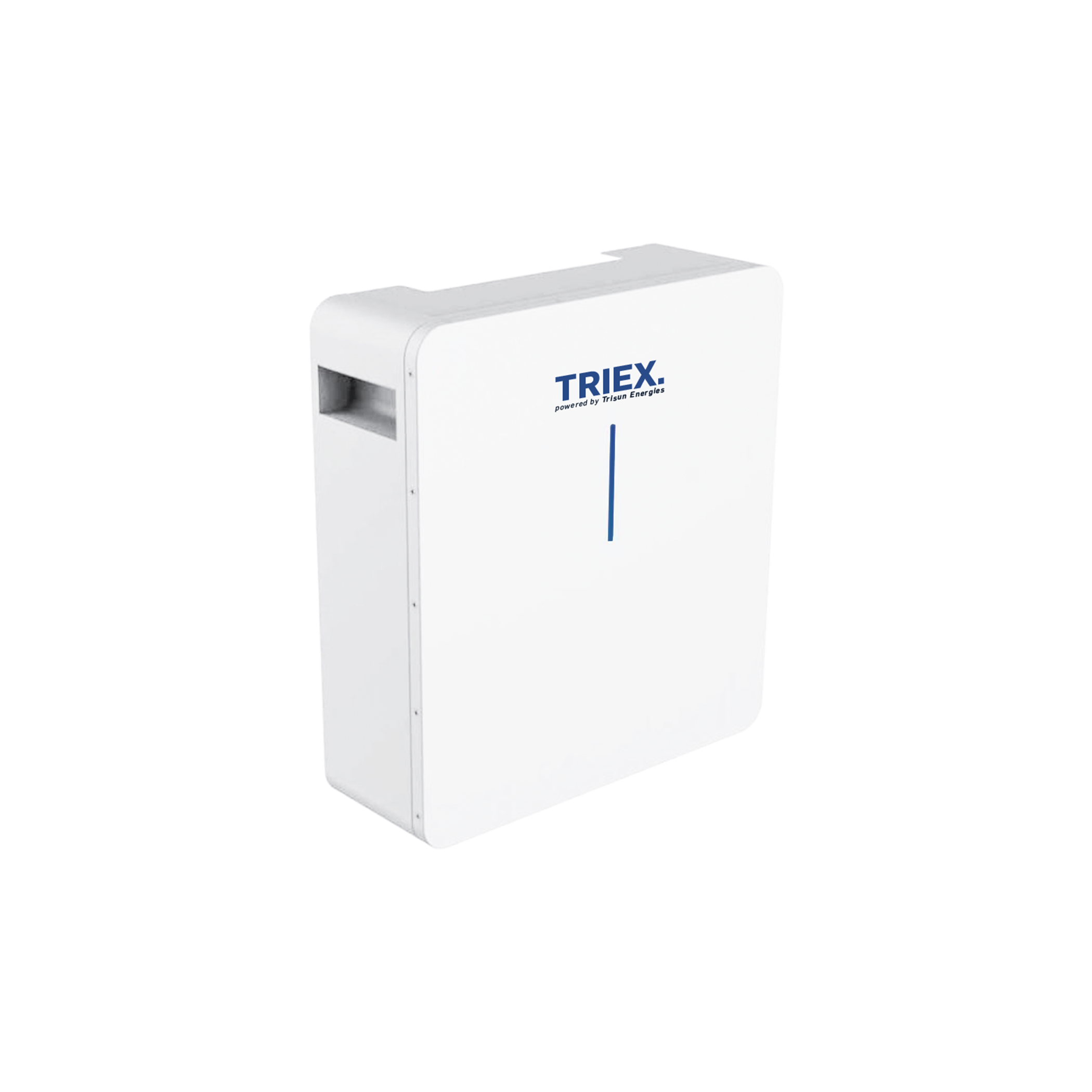

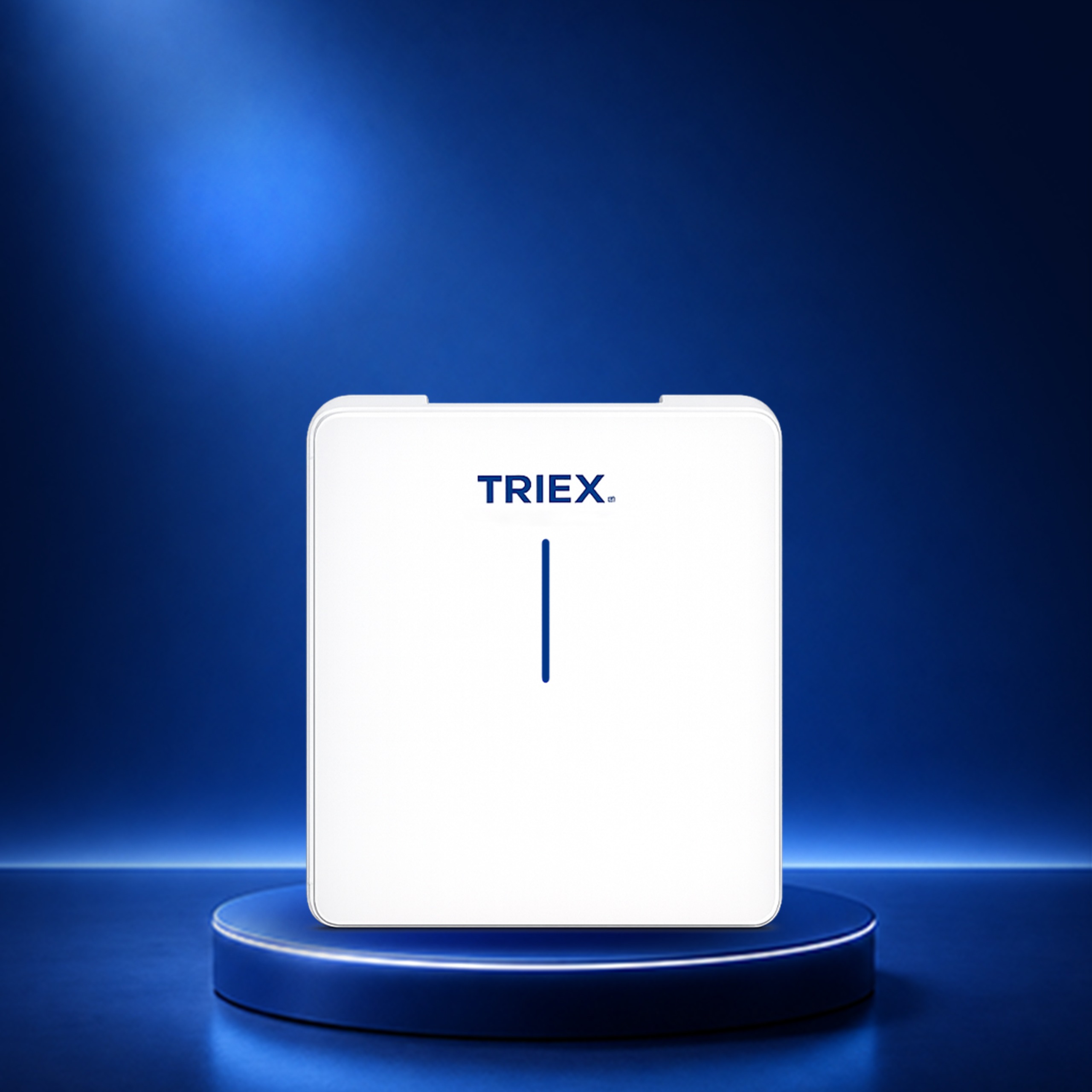

TXL-5.12 LOW VOLTAGE BATTERY
Categories: LITHIUM ION BATTERIES
The Triex TXL-5.12 is a 5.12kWh wall-mounted LiFePO4 lithium battery designed for residential hybrid solar systems across Pakistan. Built on LFP 3.2V 100Ah cells in a 16S1P configuration, it delivers 4.86kWh of usable energy at 90% depth of discharge, giving Pakistani homes reliable backup power through daily K-Electric and WAPDA outages without the maintenance and replacement burden of lead-acid batteries.
With a cycle life of 6000 or more at 70% end of life and 80% depth of discharge, the TXL-5.12 outlasts lead-acid batteries by 4 to 6 times under Pakistan’s real-world daily cycling conditions. A family using one charge and discharge cycle per day can expect over 16 years of consistent performance, making it one of the most practical entry-level lithium storage options available for Pakistani solar systems.
The built-in advanced Battery Management System monitors cell voltage, temperature, current, and state of charge continuously. It communicates with compatible hybrid inverters through CAN and RS485, enabling fully automatic charge and discharge management. Up to 16 units can be connected in parallel, scaling the total storage capacity to 81.92kWh for larger homes or small commercial setups that need more backup time.
The compact wall-mounted or floor-mounted design fits easily in a utility room, meter cabinet, or covered area, keeping the installation clean and organized without requiring dedicated floor space in most cases.
Product Description
Key Features
- 5.12kWh Rated Energy: 4.86kWh of usable capacity at 90% depth of discharge, enough to run fans, lights, refrigerator, and router through a 4 to 6 hour load shedding window
- 6000+ Cycle Life: At one cycle per day, this battery lasts over 16 years, eliminating the repeat replacement cost of lead-acid batteries every 2 to 3 years
- LiFePO4 Chemistry: Lithium iron phosphate cells deliver superior thermal stability, no risk of thermal runaway, and consistent performance in Pakistan’s high ambient temperatures
- 90% Depth of Discharge: Safely use 90% of stored capacity daily without accelerating battery degradation or shortening lifespan
- Advanced BMS: Built-in Battery Management System handles overcharge protection, over-discharge cutoff, short circuit protection, and temperature management automatically
- CAN and RS485 Communication: Seamless integration with compatible 48V hybrid inverters for fully automatic charge and discharge control without manual settings
- Up to 16 Units in Parallel: Scale storage from 5.12kWh to 81.92kWh by connecting multiple units, suitable for larger homes or small commercial setups
- Wall Mounted or Floor Mounted: Flexible installation options fit most utility rooms, covered areas, and meter cabinets without requiring dedicated floor space
- 51.2V Nominal Voltage: Compatible with all 48V system hybrid inverters in the Triex lineup
- Wide Operating Temperature: Charge from 0 to 55°C, discharge from -20 to 55°C, built to handle Pakistan’s extreme summer and winter conditions
- 5 Year Warranty: 5 years product warranty and 5 years service warranty backed by Triex Solar Team
- CE and UN38.3 Certified: Meets international safety and transport standards for lithium battery systems
Technical Specifications
| Specification | TXL-5.12 |
|---|---|
| Cell Model | LFP 3.2V 100Ah |
| Combination Mode | 16S1P |
| Rated Energy | 5.12kWh |
| Usable Energy (90% DOD) | 4.86kWh |
| Rated Capacity | 100Ah at 0.5C, 25°C |
| Rated Voltage | 51.2V |
| Voltage Range | 43.2V to 57.6V |
| Rated Charge/Discharge Current | 50A (0.5C) |
| Max Charge/Discharge Current | 100A (1C) |
| Recommended Charge/Discharge | 50A |
| Cycle Life | 6000+ cycles at 70% EOL, 80% DOD |
| Depth of Discharge | 90% |
| Charge Temperature | 0°C to 55°C |
| Discharge Temperature | -20°C to 55°C |
| Storage Conditions | 3 months at -20 to 45°C, 6 months at 0 to 35°C |
| Relative Humidity | 5% to 95% |
| Altitude | Up to 4000m |
| Protection Grade | IP20 |
| Installation Mode | Wall Mounted or Floor Mounted |
| Max Parallel Units | 16 |
| Communication | CAN, RS485 |
| Firefighting (Optional) | Aerosol |
| Dimensions (W x H x D) | 460 x 550 x 160mm |
| Weight | 51 kg |
| Certifications | CE, UN38.3 |
Who Should Buy This
The TXL-5.12 is the right starting point for Pakistani homeowners who want to move from lead-acid to lithium storage without a large upfront investment. It is ideal for homes in Karachi, Lahore, and other cities with 4 to 8 hours of daily load shedding that need enough stored energy to run fans, lights, refrigerator, and router through a standard outage window.
If you are installing a new hybrid solar system or upgrading an existing one, the TXL-5.12 delivers the reliability and lifespan that lead-acid batteries cannot match, at a capacity that suits most medium-sized Pakistani homes. Multiple units can be added later as your power needs grow, making it a flexible long-term storage solution.
Compatibility
The TXL-5.12 operates at 51.2V nominal voltage and is compatible with all 48V system hybrid inverters. Confirmed compatible Triex models include:
- Triex IP66 6kW PV12000
- Triex IP66 8kW PV16000
- Axpert Ultra-Max 8kW PV10000
- Axpert Ultra-Max 11kW PV12000
- InfiniSolar V IV 6kW PV7000
- Axpert VM IV 6kW PV6000
Not compatible with the Axpert VM IV 4kW PV5000, which uses a 24V battery system.
Warranty
5 years product warranty plus 5 years service warranty. Contact Triex Solar Team for warranty registration and after-sales support.
