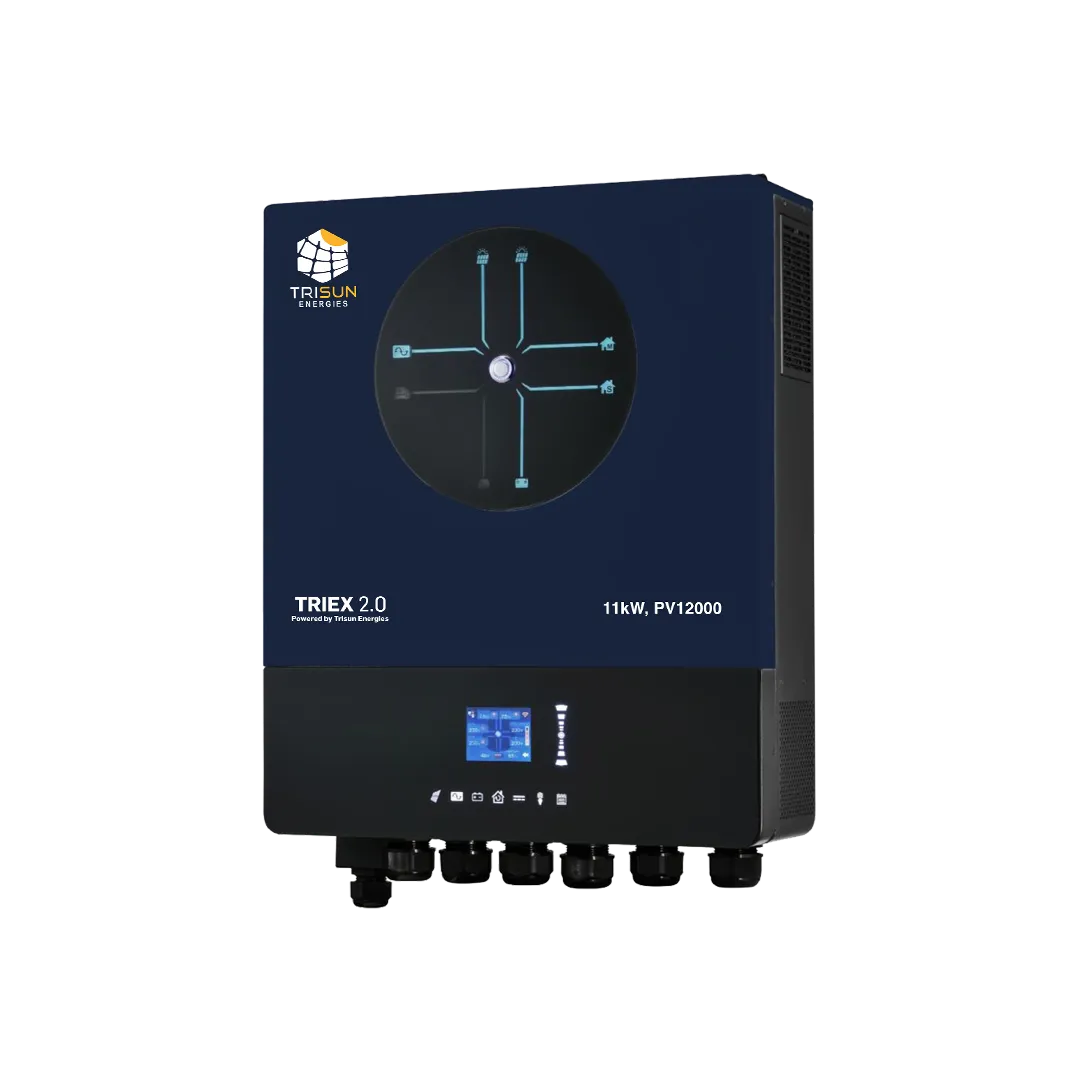

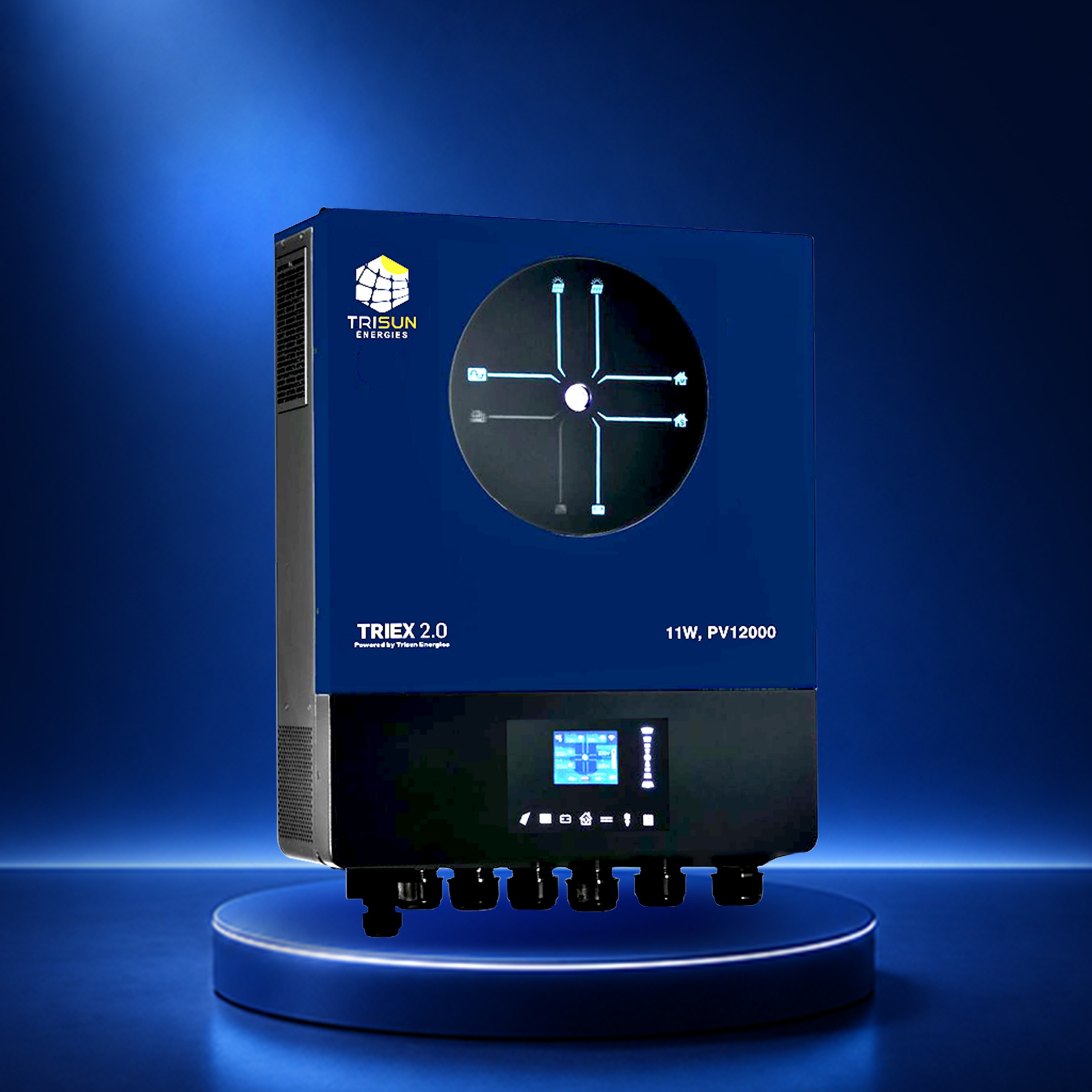

Axpert Ultra-Max 11kW, PV12000
Categories: Inverter, IP21 HYBRID INVERTERS
The Triex Axpert Ultra-Max 11kW is a high-capacity hybrid solar inverter designed for large Pakistani homes, villas, and small commercial installations where power demand is high and load shedding disruption is not acceptable. With 11000VA of rated output, 22000VA of surge power, and 12000W of dual MPPT solar input, it handles the heaviest residential loads in Pakistan, including multiple inverter ACs, refrigerators, water pumps, and office equipment, all simultaneously and without compromise.
The Axpert Ultra-Max 11kW operates in hybrid mode, meaning it stays connected to K-Electric or WAPDA when available, uses solar to offset your electricity bill, charges the battery bank with excess solar energy, and switches seamlessly to battery backup when load shedding starts. The transfer time is 10ms for personal computers and 20ms for home appliances, so the transition is smooth and most devices never detect the switch.
With parallel capability for up to 6 units, the Axpert Ultra-Max 11kW can scale to 66kW of combined output for larger commercial or industrial applications. The built-in current transformer sensor and external BMS temperature sensor support give installers precise control over system behavior across large installations. AFCI detection, GFCI protection, and rapid shutdown compliance add a critical safety layer that is essential for any large solar installation.
For DHA, Clifton, Bahria Town, and other premium residential areas in Karachi and Lahore where households run 2 to 3 air conditioners and expect uninterrupted power, the Axpert Ultra-Max 11kW is the right inverter.
Product Description
Key Features
- 11kW Continuous Output: Powers two inverter ACs, refrigerator, full lighting, water pump, and office equipment simultaneously without overloading
- 12000W Dual MPPT Solar Input: Two independent MPPT trackers accept up to 12kW of solar panels for maximum daytime generation and rapid battery recharging
- 22000VA Surge Power: Handles the high startup surge of large air conditioners, water pumps, and motor loads without tripping
- Parallel Operation Up to 6 Units: Connect up to 6 inverters in parallel for a combined output of 66kW, scalable for large villas or small commercial setups
- 10ms Transfer Time for Computers: Seamless transition from grid to battery keeps computers, routers, and sensitive electronics running without interruption during load shedding
- Built-In Current Transformer Sensor: Precise real-time load monitoring for accurate energy management and anti-backflow control
- External BTS Support: External battery temperature sensor detection for accurate temperature-compensated charging in large battery banks
- AFCI Detection: Arc fault circuit interrupter detection protects against DC arc faults, a critical safety feature for large solar installations
- GFCI and Rapid Shutdown Support: Ground fault and rapid shutdown protection meets international safety requirements for grid-connected solar systems
- 48V Smart Battery System: Compatible with lead-acid and lithium batteries with BMS communication through CAN, RS485, RS232, and WiFi
- Built-In WiFi and USB Monitoring: Real-time system monitoring from your smartphone through the SolarCloud app or USB connection
- Pure Sine Wave Output: Clean, stable power for sensitive electronics, inverter ACs, and medical equipment
- 93% Peak Efficiency: High battery to inverter conversion efficiency during backup operation
- CE Certified: Meets international safety and compliance standards for hybrid solar inverters
- 2 Plus 2 Years Warranty: Standard warranty with Triex after-sales support across Pakistan
Technical Specifications
| Specification | Axpert Ultra-Max 11kW |
|---|---|
| Model | Axpert Ultra Max 11K |
| Rated Output Power | 11000VA / 11000W |
| Maximum PV Array Power | 12000W (6000W x 2) |
| MPPT Voltage Range | 90VDC to 450VDC |
| Max PV Array Open Circuit Voltage | 500VDC |
| Max PV Input Current | 27A x 2 (MAX 40A) |
| Max Solar Charge Current | 150A |
| Max AC Charge Current | 150A |
| Battery Voltage | 48VDC |
| Floating Charge Voltage | 54VDC |
| Overcharge Protection | 63VDC |
| Surge Power | 22000VA |
| Transfer Time | 10ms (PC), 20ms (Home Appliances) |
| Peak Efficiency | 93% |
| Output Waveform | Pure Sine Wave |
| AC Voltage Regulation | 230VAC plus or minus 5% |
| Selectable Voltage Range | 170 to 280VAC (PC), 90 to 280VAC (Appliances) |
| Frequency Range | 50Hz / 60Hz Auto Sensing |
| Parallel Units | Up to 6 (66kW combined) |
| Built-In WiFi | Yes |
| BMS Communication | CAN, RS485, RS232, WiFi, Dry-contact |
| External Current Sensor | Yes, built-in current transformer |
| AFCI Detection | Yes |
| GFCI and Rapid Shutdown | Yes |
| Compliance Safety | CE |
| Operating Temperature | -10°C to 50°C |
| Humidity | 5% to 95% Non-Condensing |
| Ingress Protection | IP21 |
| Dimensions (D x W x H) | 145 x 438 x 553.6mm |
| Net Weight | 18.4 kg |
Who Should Buy This
The Axpert Ultra-Max 11kW is the right choice for large Pakistani homes in DHA, Clifton, Bahria Town, Gulistan-e-Jauhar, and similar premium areas where households run 2 or more air conditioners, have high general appliance loads, and need uninterrupted power through K-Electric and WAPDA outages that can last 8 to 12 hours in summer.
It is also the right choice for small businesses, clinics, offices, and shops in Karachi and Lahore that need reliable hybrid solar backup at a capacity that covers their full operational load without cutting corners on system size.
If your home or business has consistently high power demand and you want a hybrid inverter that handles it all without load shedding disruption, the Axpert Ultra-Max 11kW is the most capable inverter in the Triex hybrid lineup.
Compatibility
The Axpert Ultra-Max 11kW uses a 48V battery system. Compatible Triex batteries include:
- Triex TXL-5.12 (51.2V, 5.12kWh, LiFePO4) ✅
- Triex TXL-16.07 (51.2V, 16.07kWh, LiFePO4) ✅
Not compatible with 12V or 24V batteries including Triex TXL-12V-100 and TXL-24V-100.
Warranty
2 plus 2 years standard warranty. Contact Triex Solar Team for warranty registration and after-sales support.
