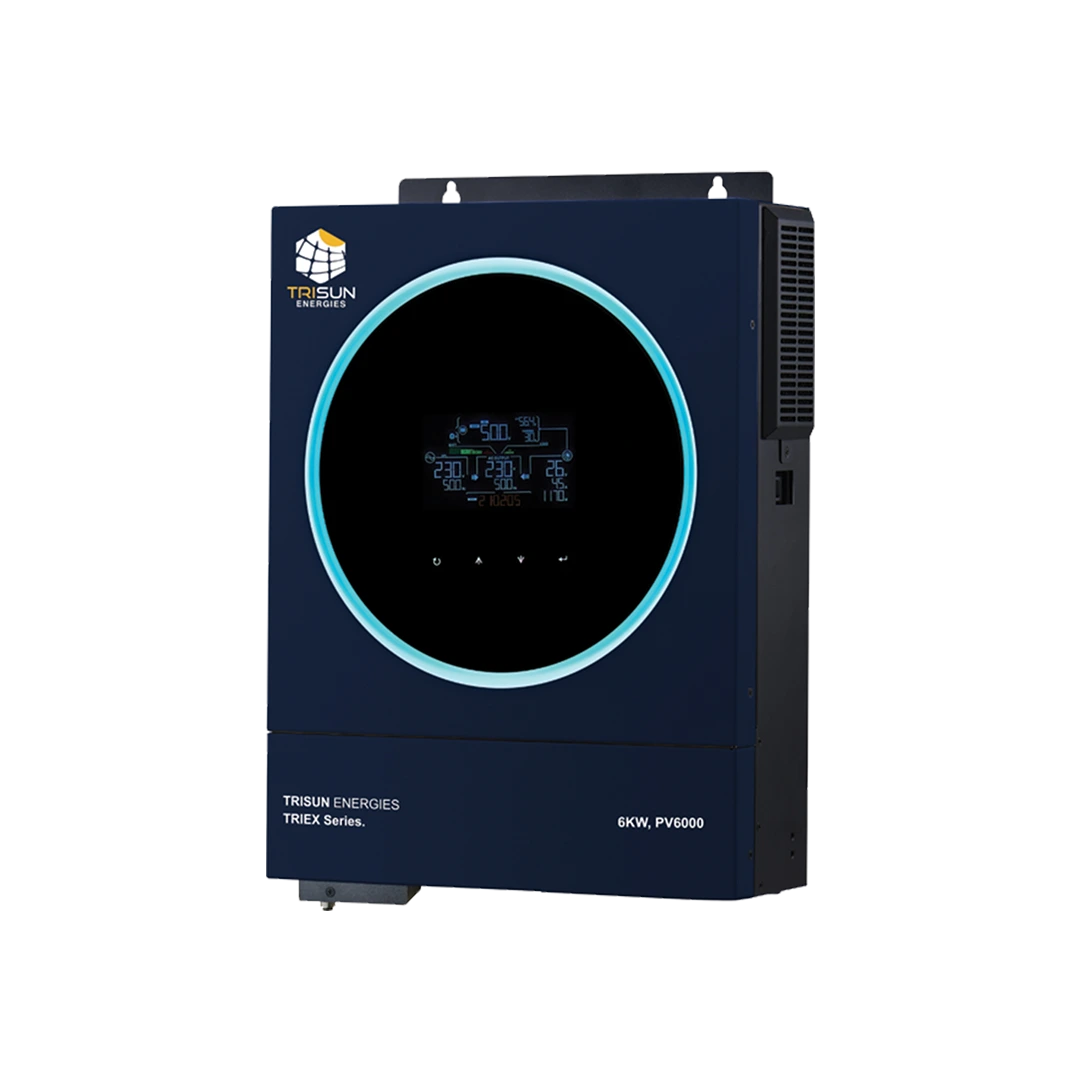

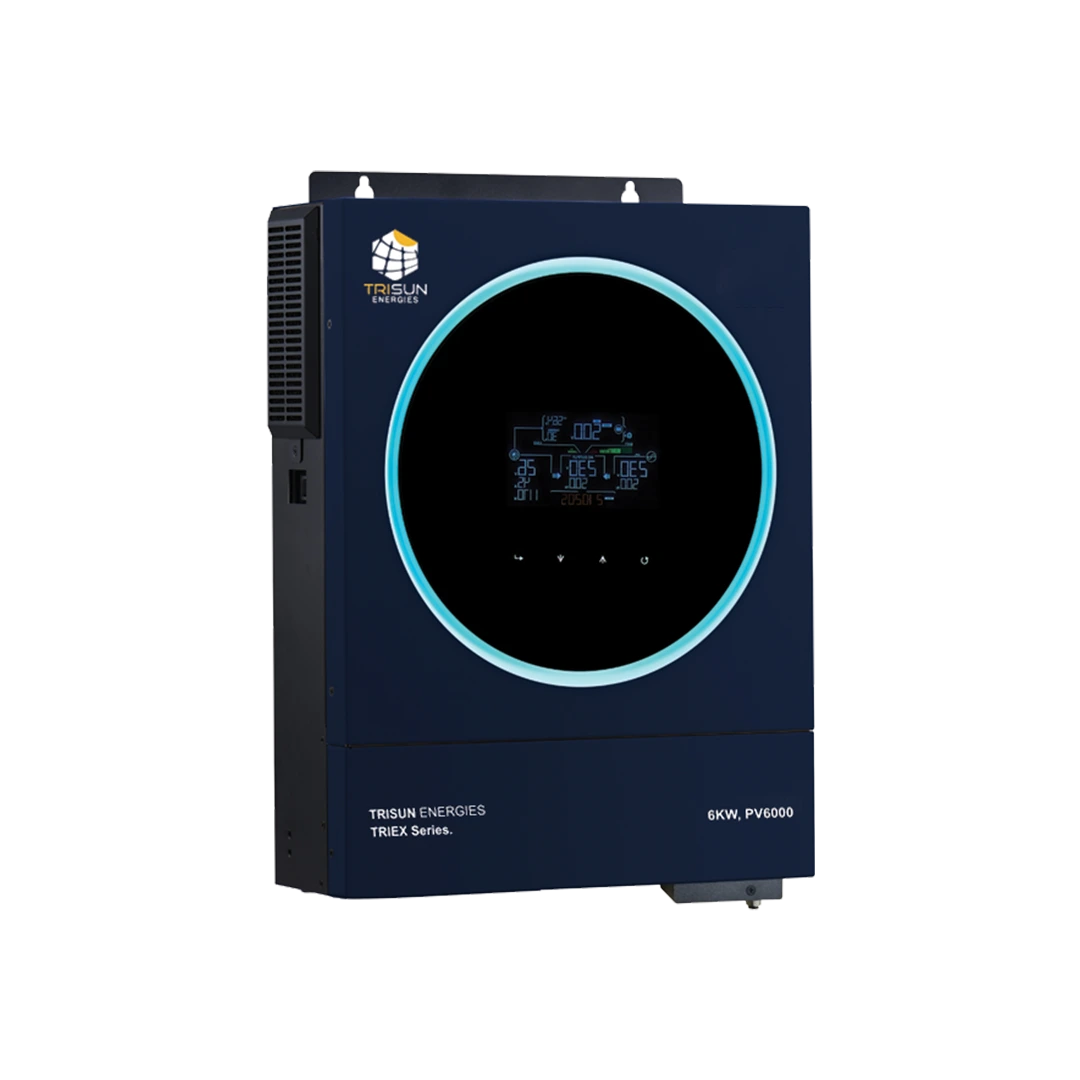

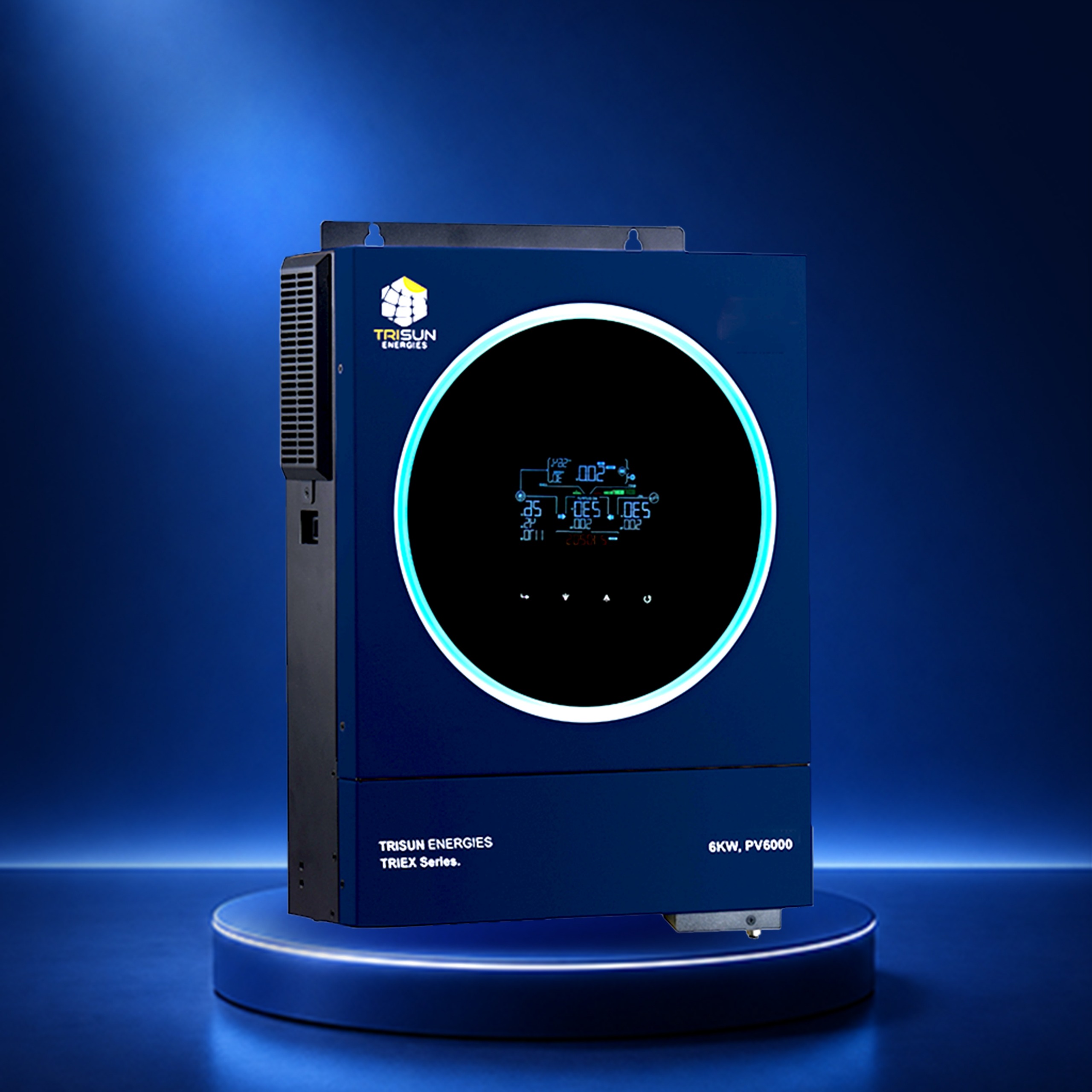

Axpert VM IV 6kW, PV6000
Categories: Inverter, IP21 HYBRID INVERTERS
The Triex Axpert VM IV 6kW is a hybrid solar inverter designed for medium-sized Pakistani homes that want a reliable, straightforward solar system with proven performance and practical features. With 6000VA of rated output, 6000W of maximum PV input, and a wide MPPT voltage range of 60V to 450VDC, it handles the standard appliance load of most Pakistani families while keeping electricity bills down through solar-first energy management.
The Axpert VM IV 6kW operates in hybrid mode, staying connected to K-Electric or WAPDA when available and switching to battery backup when load shedding starts. Transfer time is 10ms for personal computers and 20ms for home appliances, keeping most devices running without interruption through daily outages. When the grid returns, the inverter reconnects automatically and resumes charging the battery from solar or grid depending on which is available.
One feature that sets the Axpert VM IV 6kW apart from simpler inverters is its built-in battery equalizer. In lead-acid battery banks with multiple cells, individual cells can develop uneven charge levels over time, reducing total capacity and shortening lifespan. The battery equalizer actively monitors and balances cell voltages during charging, extending battery lifespan and maintaining consistent capacity throughout the battery bank’s life. For Pakistani homes using lead-acid batteries, this feature alone can add 1 to 2 years of additional battery service life.
The built-in anti-dust kit protects internal components from Pakistan’s dusty environment, where construction dust, road dust, and seasonal smog can clog cooling vents and reduce inverter lifespan significantly. Data log event storage inside the inverter maintains a record of system events, faults, and performance history for accurate troubleshooting without requiring cloud connectivity.
With built-in WiFi for mobile monitoring, USB on-the-go data access, and a 2 plus 2 year warranty, the Axpert VM IV 6kW is a complete, ready-to-install hybrid solution for Pakistani families who want dependable solar performance without unnecessary complexity.
Product Description
Key Features
- 6kW Continuous Output: Handles fans, lights, refrigerator, television, router, inverter AC, and standard home appliances simultaneously within rated capacity
- 6000W Maximum PV Input: Accepts up to 6kW of solar panels for reliable daytime generation and steady battery recharging through Pakistan’s long sunny days
- Wide MPPT Voltage Range: 60V to 450VDC MPPT range starts harvesting solar energy from early morning low-light conditions, maximizing daily solar output
- Built-In Battery Equalizer: Automatically balances cell voltages in lead-acid battery banks during charging, extending battery lifespan by 1 to 2 years compared to systems without equalization
- 10ms Transfer Time for Computers: Seamless transition from grid to battery keeps computers, routers, and sensitive electronics running without interruption during K-Electric and WAPDA load shedding
- Built-In Anti-Dust Kit: Protects internal components from Pakistan’s dusty environment, extending inverter service life in homes near construction zones, roads, and dusty urban areas
- Data Log Event Storage: Maintains a complete record of system events, faults, and performance history inside the inverter for accurate troubleshooting without cloud dependency
- Built-In WiFi for Mobile Monitoring: Real-time monitoring of solar input, battery status, grid interaction, and load output from your smartphone
- USB On-The-Go Function: Direct USB data access for system diagnostics, data export, and firmware updates without requiring app connectivity
- Maximum PV Input Current 27A: Supports a wide range of panel configurations within the 6kW input capacity
- 48V Smart Battery System: Compatible with lead-acid and lithium batteries with BMS communication through USB, RS232, RS485, WiFi, and dry-contact
- Pure Sine Wave Output: Clean, stable power for sensitive electronics, inverter ACs, computers, and medical equipment
- 90% to 93% Peak Efficiency: Reliable conversion efficiency during both grid-tied and battery backup operation
- Net Metering Compatible: Grid connection supports NEPRA net metering approval for K-Electric and WAPDA areas
- 2 Plus 2 Years Warranty: Standard warranty with Triex after-sales support across Pakistan
Technical Specifications
| Specification | Axpert VM IV 6kW |
|---|---|
| Model | PV6000 |
| Rated Power | 6000VA / 6000W |
| Maximum PV Array Power | 6000W |
| MPPT Voltage Range | 60VDC to 450VDC |
| Max PV Array Open Circuit Voltage | 500VDC |
| Max PV Input Current | 27A |
| Max Solar Charge Current | 120A |
| Max AC Charge Current | 100A |
| Max Charge Current | 120A |
| Battery Voltage | 48VDC |
| Floating Charge Voltage | 54VDC |
| Overcharge Protection | 63VDC |
| Surge Power | 12000VA |
| Transfer Time | 10ms (PC), 20ms (Home Appliances) |
| Peak Efficiency | 90% to 93% |
| Output Waveform | Pure Sine Wave |
| Input Voltage | 230VAC |
| Selectable Voltage Range | 170 to 280VAC (PC), 90 to 280VAC (Appliances) |
| Frequency Range | 50Hz / 60Hz Auto Sensing |
| Parallel Function | No |
| Built-In WiFi | Yes |
| Battery Equalizer | Yes |
| Anti-Dust Kit | Yes |
| Data Log Storage | Yes |
| Communication | USB, RS232, RS485, WiFi, Dry-contact |
| Operating Temperature | -10°C to 50°C |
| Humidity | 5% to 95% Non-Condensing |
| Ingress Protection | IP21 |
| Dimensions (D x W x H) | 119 x 313.6 x 457.5mm |
| Net Weight | 12 kg |
Who Should Buy This
The Axpert VM IV 6kW is the right choice for medium-sized Pakistani homes in Gulshan, North Nazimabad, Federal B Area, Nazimabad, and similar areas where the priority is a dependable, easy-to-use hybrid solar system that handles daily load shedding without complexity or oversizing.
It is ideal for families running one inverter AC, refrigerator, fans, lights, television, and router through daily K-Electric or WAPDA outages of 6 to 10 hours. The battery equalizer makes it particularly well suited for homeowners who are pairing the inverter with a lead-acid battery bank and want to maximize battery lifespan without manual maintenance.
If you want a proven, practical hybrid inverter with useful everyday features, straightforward operation, and solid warranty coverage, the Axpert VM IV 6kW delivers exactly that.
Compatibility
The Axpert VM IV 6kW uses a 48V battery system. Compatible Triex batteries include:
- Triex TXL-5.12 (51.2V, 5.12kWh, LiFePO4) ✅
- Triex TXL-16.07 (51.2V, 16.07kWh, LiFePO4) ✅
Not compatible with 12V or 24V batteries including Triex TXL-12V-100 and TXL-24V-100.
Warranty
2 plus 2 years standard warranty. Contact Triex Solar Team for warranty registration and after-sales support.
