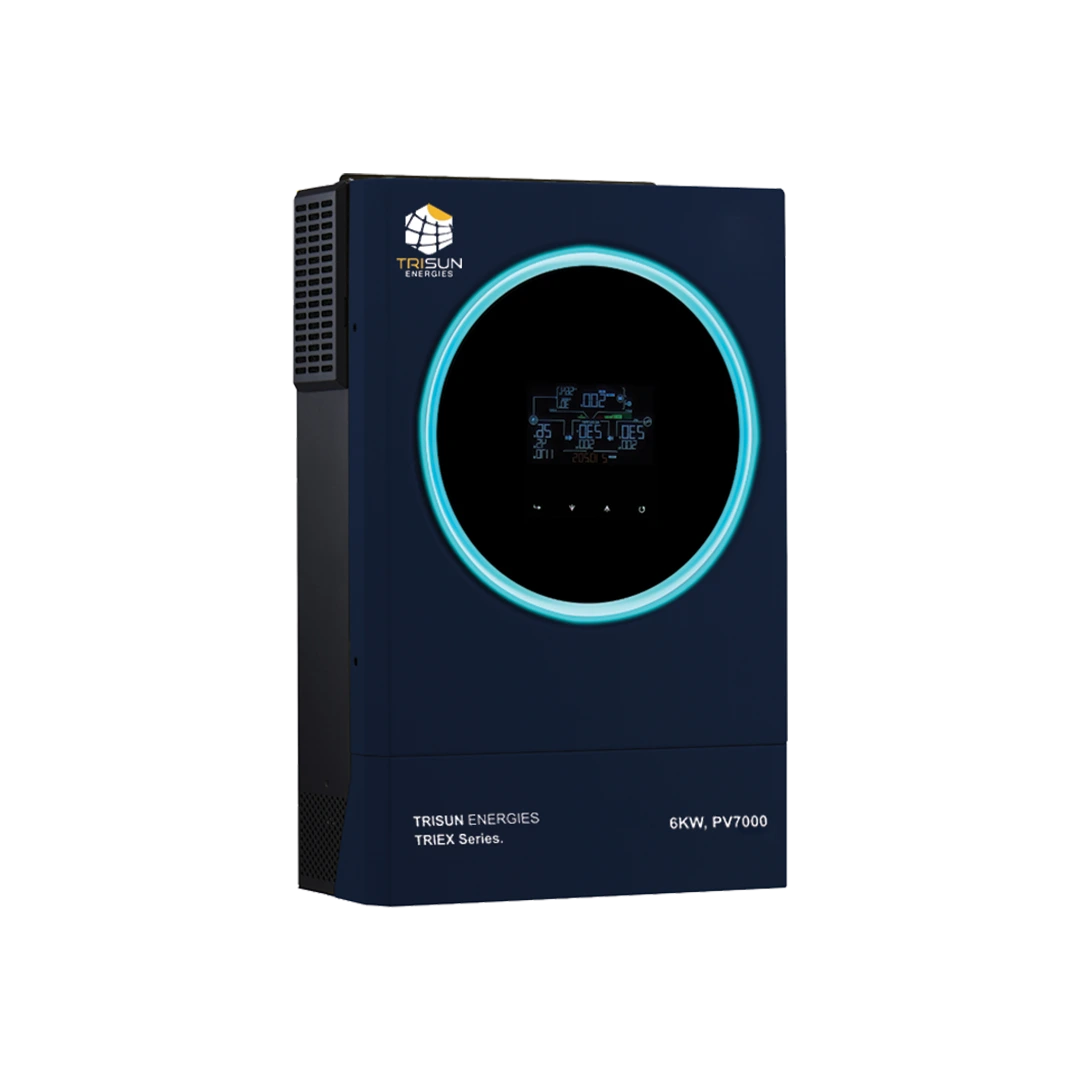

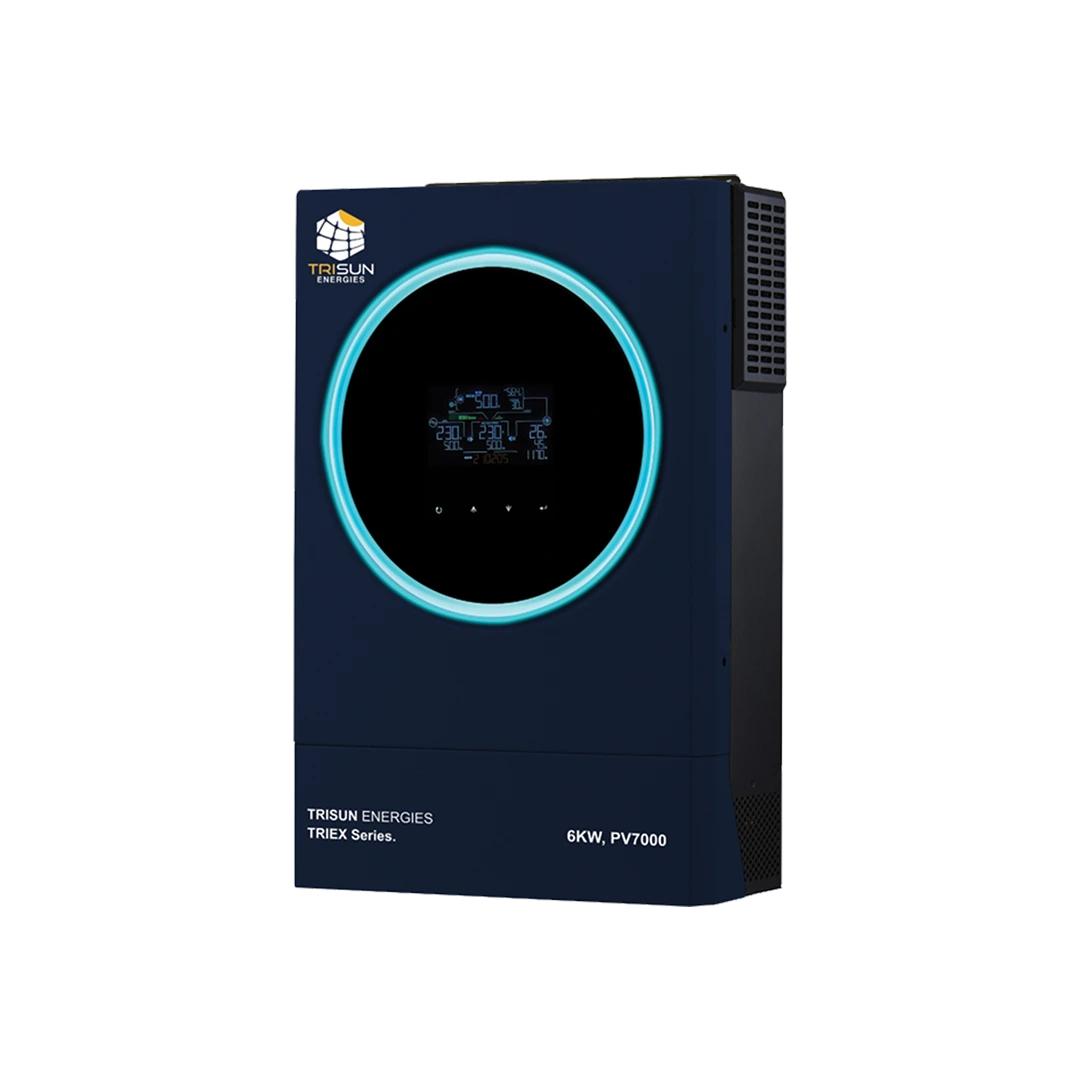

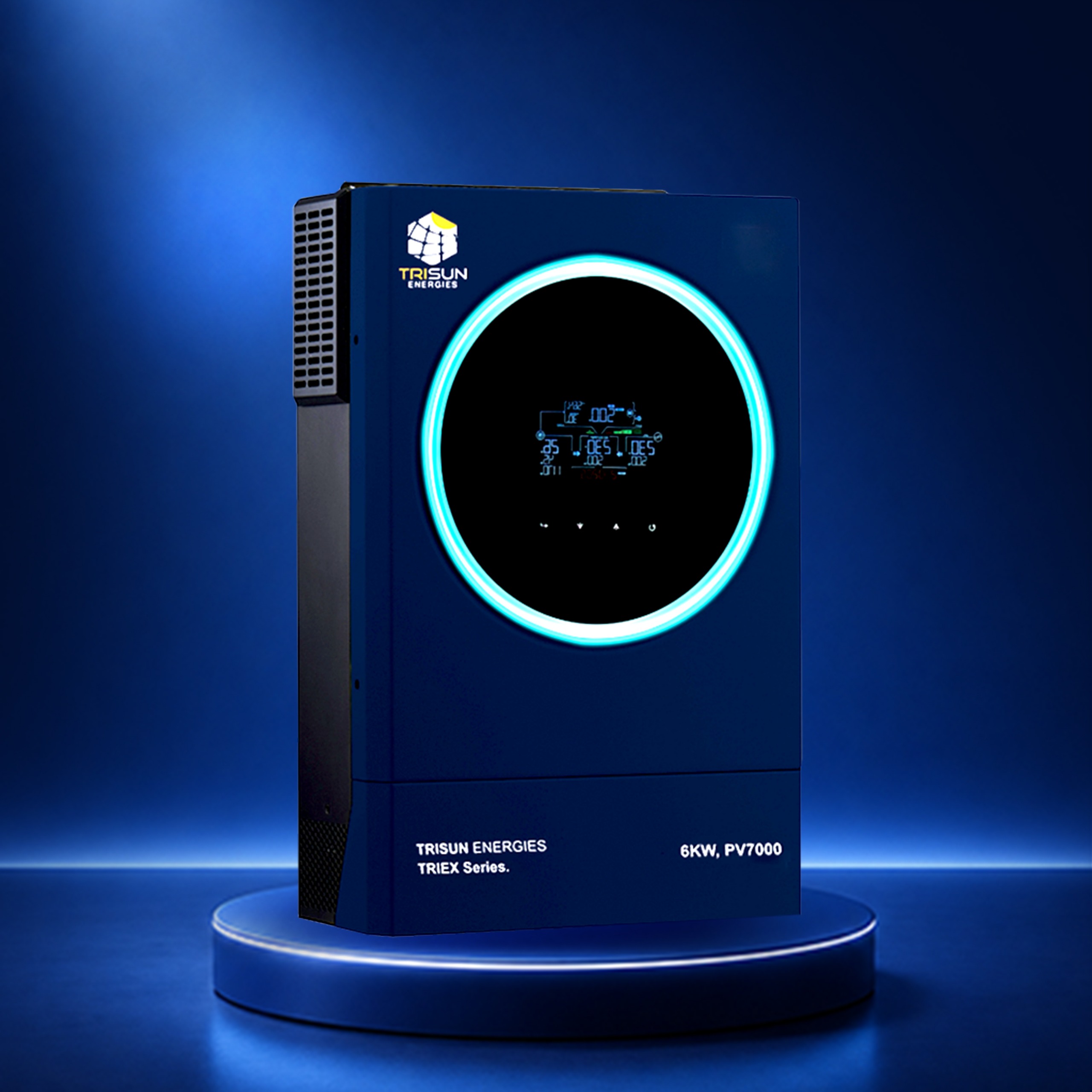

InfiniSolar V IV 6kW, PV7000
Categories: Inverter, IP21 HYBRID INVERTERS
The Triex InfiniSolar V IV 6kW is a hybrid solar inverter designed for Pakistani homes and small businesses that want flexible, programmable energy management alongside reliable load shedding backup. With 7000W of maximum PV input, 6000W of rated output, and programmable supply priority between solar, battery, and grid, the InfiniSolar V IV gives the user full control over how the system distributes and stores energy throughout the day.
The inverter operates in true hybrid mode, staying connected to K-Electric or WAPDA when available while prioritizing solar generation to reduce your electricity bill. When load shedding begins, it switches to battery backup in 10ms for personal computers and 20ms for home appliances, keeping most devices running without any perceptible interruption.
One of the most distinctive features of the InfiniSolar V IV 6kW is its parallel capability for up to 9 units. This means a single installation can scale from 6kW to 54kW of combined output, making it one of the most expandable hybrid inverters in the Triex lineup. For homeowners who plan to expand their system over time, or for small commercial setups that need scalable power, the 9-unit parallel capability provides a growth path that most other inverters cannot match.
User-adjustable charging current and voltage give installers and technically experienced homeowners precise control over how the battery bank is charged, which is particularly useful when pairing the inverter with specific LiFePO4 battery configurations or when optimizing for maximum battery lifespan in Pakistan’s high-temperature conditions.
Built-in anti-dust kit protection extends the inverter’s service life in Pakistan’s dusty environments, where construction dust, road dust, and seasonal smog accumulate quickly on electronic equipment. The 96% maximum conversion efficiency and support for net metering through NEPRA-compliant grid connection make the InfiniSolar V IV a strong all-around hybrid choice for medium to large Pakistani homes.
Product Description
Key Features
- 6kW Continuous Output: Handles fans, lights, refrigerator, television, router, inverter AC, and multiple simultaneous loads within rated capacity
- 7000W Maximum PV Input: Accepts up to 7kW of solar panels through a single MPPT tracker for reliable daytime generation and battery recharging
- Programmable Supply Priority: Choose between solar first, grid first, or battery first operation depending on your energy goals and load shedding patterns
- Parallel Operation Up to 9 Units: Scale from 6kW to 54kW by connecting up to 9 inverters in parallel, the highest parallel count in the Triex hybrid lineup
- User-Adjustable Charging Current and Voltage: Fine-tune battery charging parameters to match your specific battery bank and maximize battery lifespan in Pakistan’s high-temperature conditions
- 10ms Transfer Time for Computers: Seamless transition from grid to battery keeps computers, routers, and sensitive electronics running without interruption during load shedding
- 96% Maximum Conversion Efficiency: High efficiency reduces energy waste and maximizes the value of every solar panel in your array
- Built-In Anti-Dust Kit: Extends inverter service life in Pakistan’s dusty environments where construction dust and seasonal smog accumulate rapidly
- Built-In WiFi for Mobile Monitoring: Real-time monitoring of solar input, battery status, grid interaction, and load output from your smartphone
- USB On-The-Go Function: Direct USB data access for system diagnostics and firmware updates without app dependency
- 48V Smart Battery System: Compatible with lead-acid and lithium batteries with BMS communication through USB, RS232, RS485, WiFi, and dry-contact
- Pure Sine Wave Output: Clean, stable power for sensitive electronics, inverter ACs, computers, and medical equipment
- Net Metering Compatible: Grid connection supports NEPRA net metering approval for K-Electric and WAPDA areas
- 93% Battery to Inverter Efficiency: Reliable conversion efficiency during battery backup operation
- 2 Plus 2 Years Warranty: Standard warranty with Triex after-sales support across Pakistan
Technical Specifications
| Specification | InfiniSolar V IV 6kW |
|---|---|
| Model | Axpert VM IV 6kW (InfiniSolar V IV) |
| Phase | 1-Phase In / 1-Phase Out |
| Maximum PV Input Power | 7000W |
| Rated Output Power | 6000W |
| Maximum Charging Power | 6000W |
| MPPT Voltage Range | 120VDC to 430VDC |
| Max DC Voltage | 500VDC |
| Start-Up Voltage | 120VDC / 150VDC |
| Number of MPPT Trackers | 1 |
| Max Input Current | 27A |
| Nominal Output Voltage | 220V / 230V / 240VAC |
| Output Voltage Range | 184 to 264.5VAC or 195.5 to 253VAC Selectable |
| Nominal Output Current | 26A |
| Power Factor | Greater than 0.99 |
| Max Conversion Efficiency (DC/AC) | 96% |
| Battery Mode Efficiency (DC to AC) | 93% |
| Surge Power | Not specified |
| Transfer Time | 10ms (PC), 20ms (Home Appliances) |
| Battery Voltage | 48VDC |
| Max Solar Charging Current | 120A |
| Max AC Charging Current | 120A |
| Max Charging Current | 120A |
| Parallel Function | Yes, up to 9 units |
| Built-In WiFi | Yes |
| Communication | USB, RS232, RS485, WiFi, Dry-contact |
| Operating Temperature | -10°C to 50°C |
| Humidity | 0% to 90% Non-Condensing |
| Ingress Protection | IP21 |
| Dimensions (D x W x H) | 140 x 295 x 468mm |
| Net Weight | 12 kg |
Who Should Buy This
The InfiniSolar V IV 6kW is the right choice for Pakistani homeowners and small business owners who want a flexible, programmable hybrid inverter that can grow with their energy needs. It is ideal for medium to large homes in Karachi, Lahore, and Islamabad with one to two inverter ACs, standard appliance loads, and daily K-Electric or WAPDA outages.
The 9-unit parallel capability makes it particularly well suited for buyers who are starting with a 6kW system today but want the option to expand to 12kW, 18kW, or beyond in the future without replacing the core inverter hardware. It is also a strong fit for small commercial setups that need scalable hybrid solar backup.
If you want precise control over how your solar system manages energy between solar panels, battery, and grid, the programmable supply priority and user-adjustable charging parameters of the InfiniSolar V IV give you that control without needing advanced technical knowledge.
Compatibility
The InfiniSolar V IV 6kW uses a 48V battery system. Compatible Triex batteries include:
- Triex TXL-5.12 (51.2V, 5.12kWh, LiFePO4) ✅
- Triex TXL-16.07 (51.2V, 16.07kWh, LiFePO4) ✅
Not compatible with 12V or 24V batteries including Triex TXL-12V-100 and TXL-24V-100.
Warranty
2 plus 2 years standard warranty. Contact Triex Solar Team for warranty registration and after-sales support.
