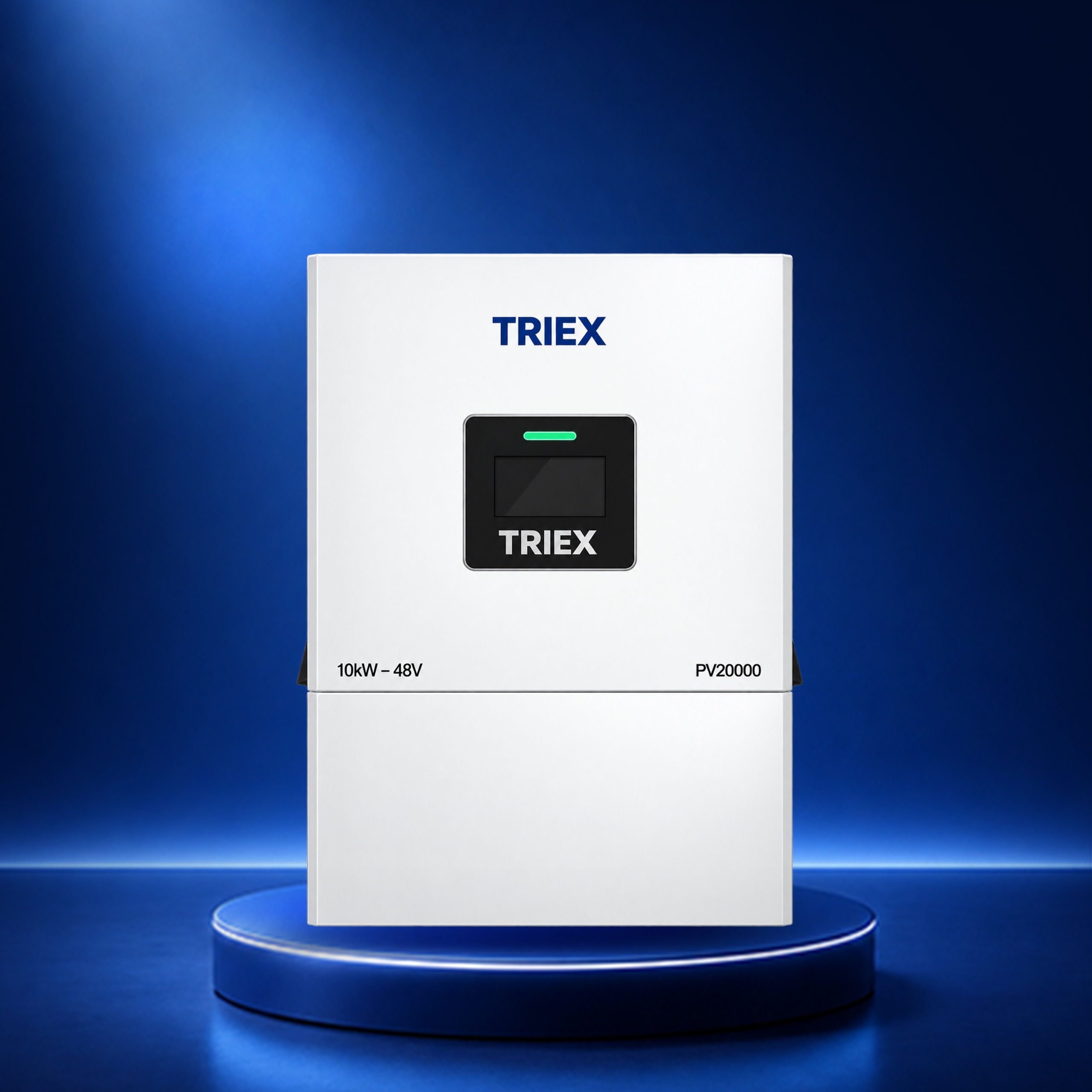

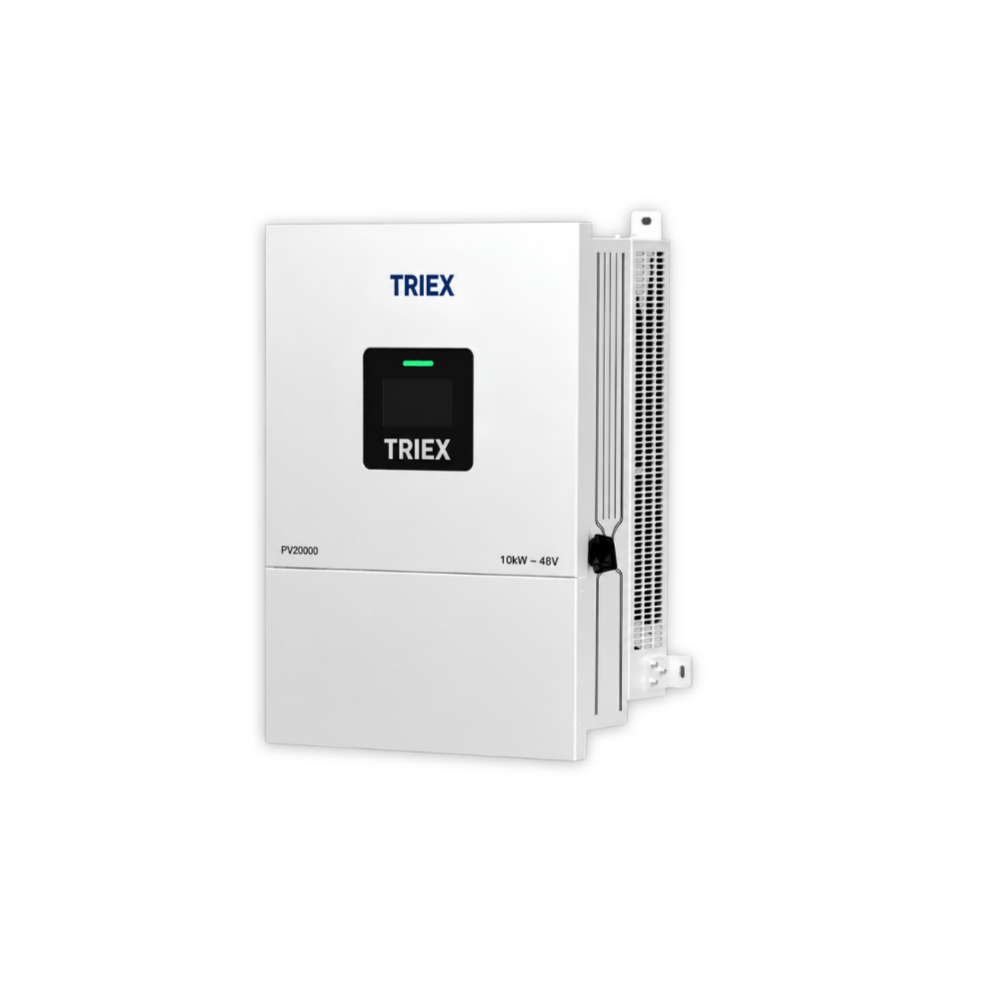

Triex 10kW, PV20000 (IP66)
Categories: Inverter, IP66 HYBRID INVERTERS
The Triex TX-10KW-PV20K is a 10kW single phase hybrid LV inverter rated for outdoor installation and designed for large Pakistani homes, villas, and small commercial setups where power demand is high and the installation environment demands full weatherproof protection. With an IP66 ingress protection rating, it mounts directly on an exterior wall without any additional enclosure, handling Karachi’s coastal humidity, monsoon rain, rooftop dust, and extreme summer heat without compromise.
At 97.6% maximum efficiency and 97.0% EU efficiency, the TX-10KW-PV20K is among the most efficient inverters in the Triex lineup. It accepts up to 20000W of solar input through dual MPPT trackers with a 62V start-up voltage, which means solar harvesting begins in early morning low-light conditions before full sun is established. The wide MPPT voltage range of 65V to 550V and maximum input voltage of 600V gives installers maximum flexibility in string design for large panel arrays.
The 200A maximum charge and discharge current is the highest in the Triex hybrid inverter range, supporting large LiFePO4 battery banks for extended backup duration through Pakistan’s longest WAPDA and K-Electric outages. The back-up switch time of less than 10ms means computers, routers, and sensitive electronics transition from grid to battery without any perceptible interruption during load shedding.
A standout feature of the TX-10KW-PV20K is its built-in generator integration. The inverter accepts up to 10000W of generator input at rated power and up to 12000VA apparent power, allowing Pakistani homeowners and businesses to integrate an existing generator as a third power source alongside solar and battery. The inverter manages all three sources automatically, charging the battery from the generator when solar is insufficient and grid is unavailable.
Peak backup power of 20000VA for 10 seconds handles the highest startup surges of large inverter ACs, water pumps, and motor loads without tripping. With a noise level below 45dB and smart air cooling, it operates quietly and efficiently even in high-load conditions.
The 5 to 10 year warranty, combined with IP66 outdoor rating and IEC 61727, IEC 62116 grid connection certification, makes the TX-10KW-PV20K a strong choice for NEPRA net metering applications where certified outdoor-rated inverters are required.
Product Description
Key Features
- 10kW Continuous Output: Powers multiple inverter ACs, refrigerator, full lighting, water pump, and office equipment simultaneously without overloading
- 20000W Dual MPPT Solar Input: Accepts up to 20kW of solar panels, the highest solar input capacity in the Triex hybrid lineup
- 97.6% Maximum Efficiency: Among the highest efficiency ratings in the Triex lineup, delivering more energy from every solar panel to your home and battery
- IP66 Outdoor Rated: Completely dustproof and protected against powerful water jets from any direction, mounts directly on exterior walls without any additional enclosure
- 62V Start-Up Voltage: Solar harvesting begins in early morning low-light conditions, maximizing daily solar generation hours
- Less Than 10ms Back-Up Switch Time: Computers, routers, and sensitive electronics transition from grid to battery without any perceptible interruption during load shedding
- 200A Max Charge and Discharge Current: Highest battery current rating in the Triex hybrid lineup, supporting the largest LiFePO4 battery banks for extended backup duration
- Generator Integration Support: Accepts up to 10kW rated generator input as a third power source alongside solar and battery, managed automatically by the inverter
- 20000VA Peak Backup Power for 10 Seconds: Handles the highest startup surges of large inverter ACs, water pumps, and motor loads without tripping
- 48V Smart Battery System: Compatible with lead-acid and lithium batteries with BMS communication through CAN and RS485
- PID Recovery Function: Actively recovers solar panel performance lost to Potential Induced Degradation, restoring panel output in affected string configurations
- Ground Fault Circuit Interrupter: Built-in GFCI protection for electrical safety in grid-connected and off-grid operation
- Insulation Resistance Monitoring: Continuous monitoring of PV string insulation for early detection of ground faults
- Residual Current Detection: Detects leakage current to protect both the system and the home from electrical faults
- AC and DC Type II Surge Protection: Built-in surge protection on both AC and DC sides guards against voltage spikes on Pakistan’s distribution network
- Smart Air Cooling: Intelligent cooling system maintains optimal operating temperature while keeping noise below 45dB
- Remote Diagnosis and Update: Remote monitoring, diagnosis, and firmware update capability through the connected monitoring platform
- 24-Hour Intelligent Energy Management: Continuous smart energy routing between solar, battery, generator, and grid to minimize electricity costs
- -25°C to +60°C Operating Range: Wide temperature tolerance handles Pakistan’s extreme summer rooftop heat and winter cold
- 0% to 100% Humidity Tolerance: Full humidity range operation without condensation risk, critical for Karachi’s coastal environment
- 5 to 10 Year Warranty: Extended warranty options backed by Triex Solar Team
Technical Specifications
| Specification | TX-10KW-PV20K |
|---|---|
| Model | TX-10KW-PV20K |
| Type | Single Phase Hybrid LV Inverter |
| Max PV Capacity | 20000W |
| Max PV Input Voltage | 600V |
| Rated Voltage | 360V |
| Start-Up Voltage | 62V |
| MPPT Voltage Range | 65V to 550V |
| Max PV Input Current | 40A / 20A per MPPT |
| Max Short Circuit Current per MPPT | 50A / 30A |
| MPPT Number | 2 |
| PV Strings per MPPT | 2 or 1 |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range | 40V to 60V |
| Max Charging Current | 200A |
| Max Discharging Current | 200A |
| Rated Output Power (Grid) | 10000W |
| Max Output Power (Grid) | 11000VA |
| Rated Output Current | 45.5A at 220V, 43.5A at 230V |
| Max Output Current | 50A |
| Max Input Power | 15000W |
| Rated Output Voltage | 220V / 230V |
| Rated Frequency | 50Hz / 60Hz |
| THDi | Less than 3% |
| Power Factor | 1 (0.8 leading to 0.8 lagging) |
| Rated Output Power (Backup) | 10000W |
| Peak Power (Backup) | 20000VA for 10 seconds |
| Back-Up Switch Time | Less than 10ms |
| Generator Rated Input Power | 10000W |
| Generator Max Apparent Input | 12000VA |
| Generator Max Input Current | 54.5A |
| Max Efficiency | 97.6% |
| EU Efficiency | 97.0% |
| DC Switch | Yes |
| DC Reverse Polarity Protection | Yes |
| Thermal Protection | Yes |
| AC Overvoltage and Current Protection | Yes |
| AC Short Circuit Protection | Yes |
| PID Recovery | Yes |
| Ground Fault Circuit Interrupter | Yes |
| Power Network Monitoring | Yes |
| Island Protection | Yes |
| Ground Fault Monitoring | Yes |
| Insulation Resistance Monitoring | Yes |
| Residual Current Detection | Yes |
| Arc Fault Circuit Interrupter | Optional |
| Surge Protection | AC Type II and DC Type II |
| Ingress Protection | IP66 |
| Operating Temperature | -25°C to +60°C (derating above 45°C) |
| Permissible Humidity | 0% to 100% |
| Permissible Altitude | 3000m (derating above 2000m) |
| Noise | Less than 45dB |
| Cooling | Smart Air Cooling |
| Display | LCD plus LED |
| Communication | RS485, CAN |
| Grid Connection Standard | IEC 61727, IEC 62116 |
| Safety/EMC Standard | IEC/EN 61000-6-3, IEC 62920, IEC 62109-1 and 2 |
| Topology | Transformerless |
| Dimensions (W x H x D) | 426 x 630 x 241mm |
| Weight | 31 kg |
| Warranty | 5 to 10 years |
Who Should Buy This
The TX-10KW-PV20K is the right choice for large Pakistani homes and small businesses that need the highest capacity outdoor-rated hybrid inverter in the Triex lineup. It is ideal for homes in DHA, Clifton, Bahria Town, and premium areas of Karachi and Lahore running 2 to 3 inverter ACs, heavy appliance loads, and requiring rooftop or exterior wall installation where IP66 protection is essential.
It is also the right choice for buyers who have an existing generator and want to integrate it into a smart solar system that manages all three power sources automatically. The generator integration feature eliminates manual switching between solar, battery, and generator during extended outages, making it practical for homes and businesses in WAPDA areas with long load shedding windows.
For commercial setups such as clinics, offices, and small retail businesses that need 10kW of reliable hybrid solar backup with outdoor installation capability and NEPRA-certified grid connection, the TX-10KW-PV20K delivers all of this in a single outdoor-rated unit.
Important Disclosure
The TX-10KW-PV20K includes built-in DC reverse polarity protection. However, always verify correct battery polarity using a multimeter before making any battery connection as standard installation best practice.
Compatibility
The TX-10KW-PV20K uses a 48V battery system with 40V to 60V operating range. Compatible Triex batteries include:
- Triex TXL-5.12 (51.2V, 5.12kWh, LiFePO4) ✅
- Triex TXL-16.07 (51.2V, 16.07kWh, LiFePO4) ✅
- Triex TE-A05 (51.2V, 5.12kWh, LiFePO4) ✅
Not compatible with 12V or 24V batteries including Triex TXL-12V-100, TXL-24V-100, and TE-A2.56.
Warranty
5 to 10 years warranty options available. Contact Triex Solar Team for warranty registration and after-sales support.
