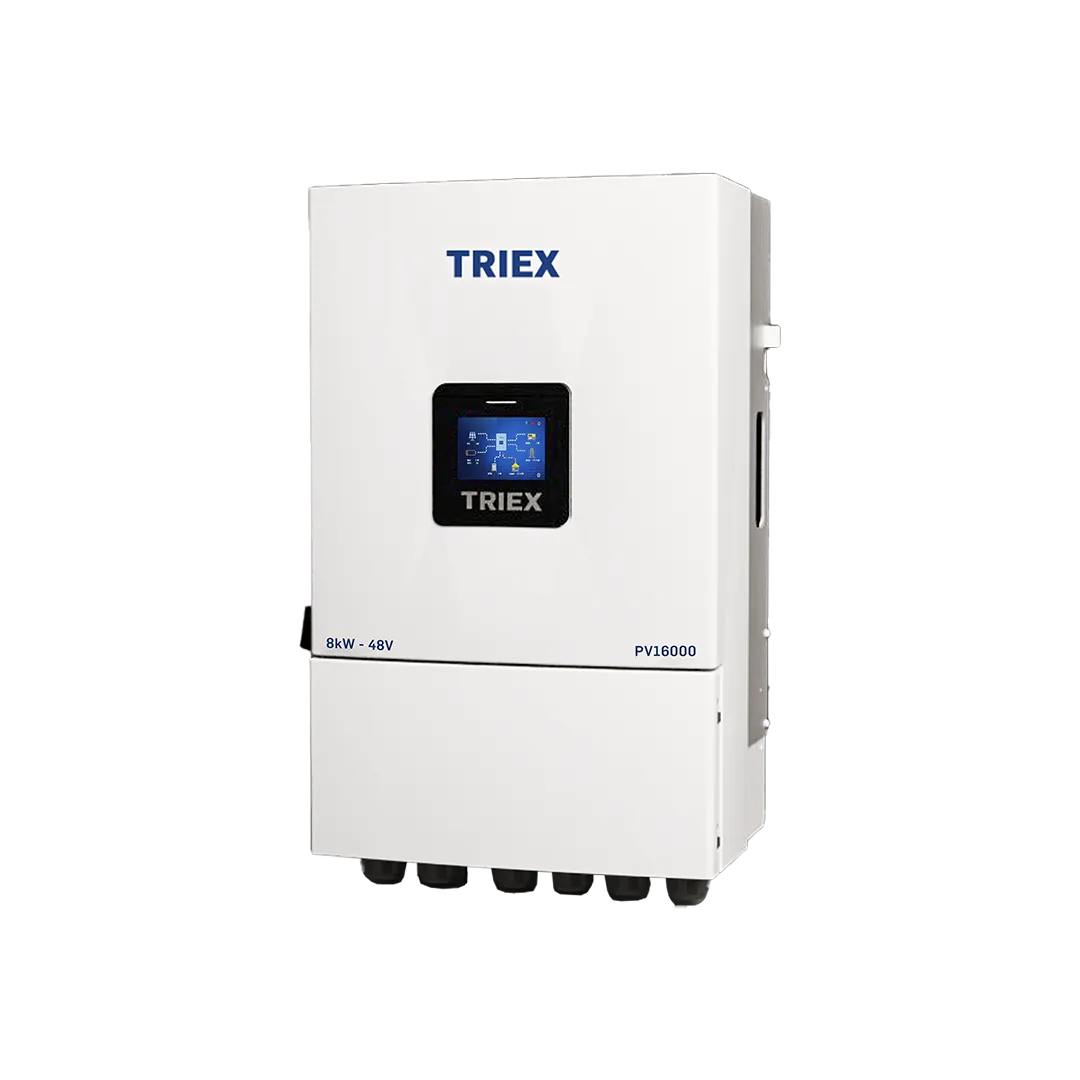

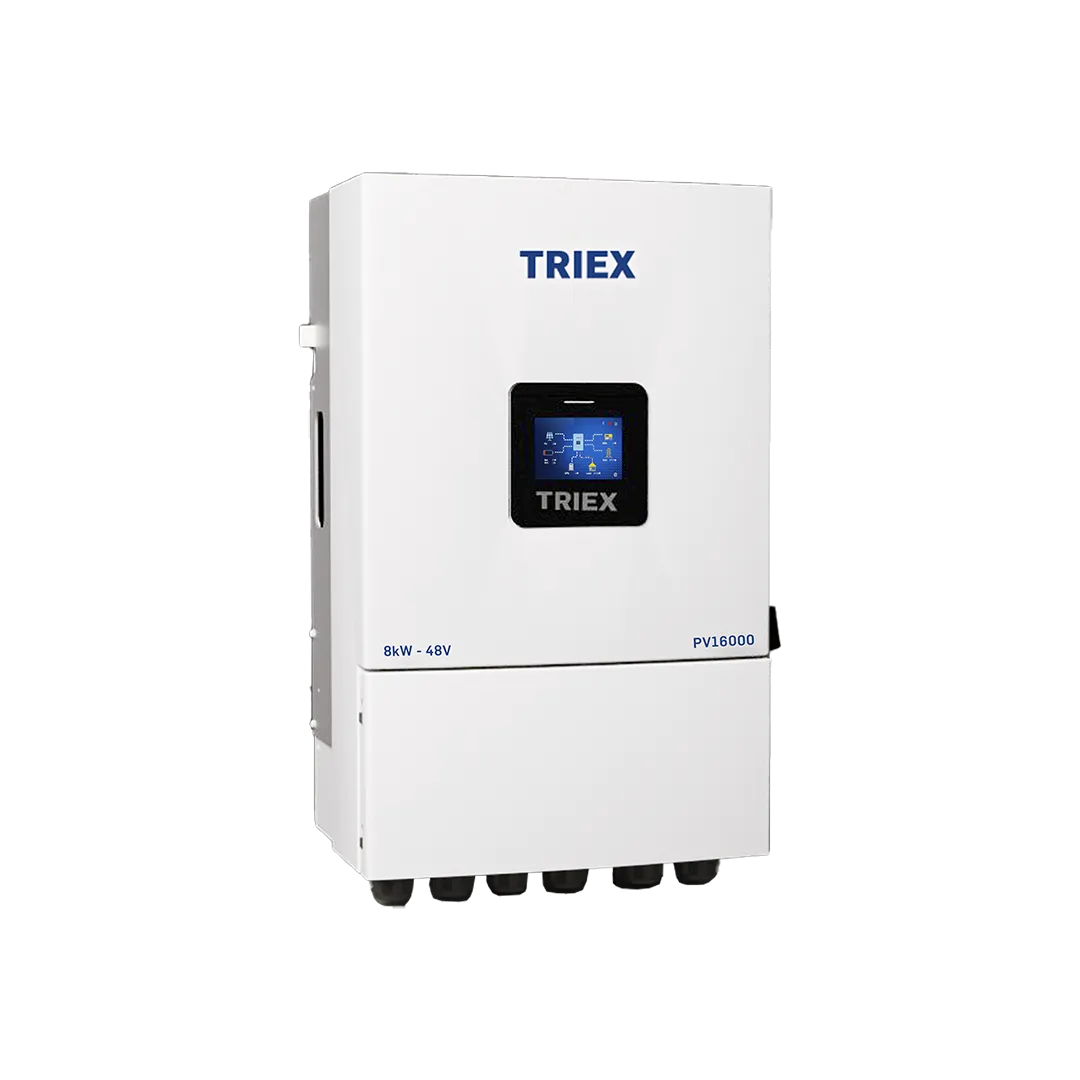

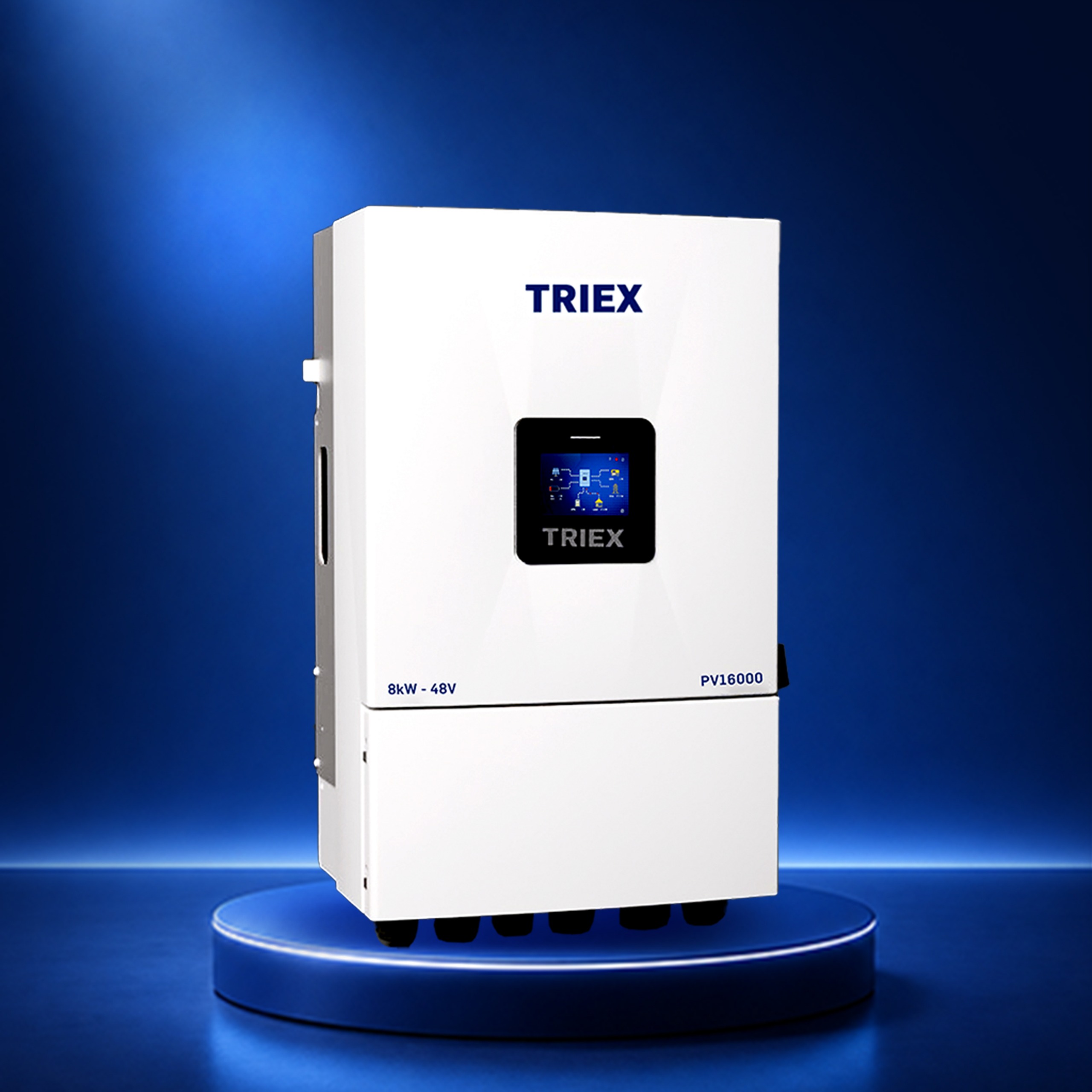

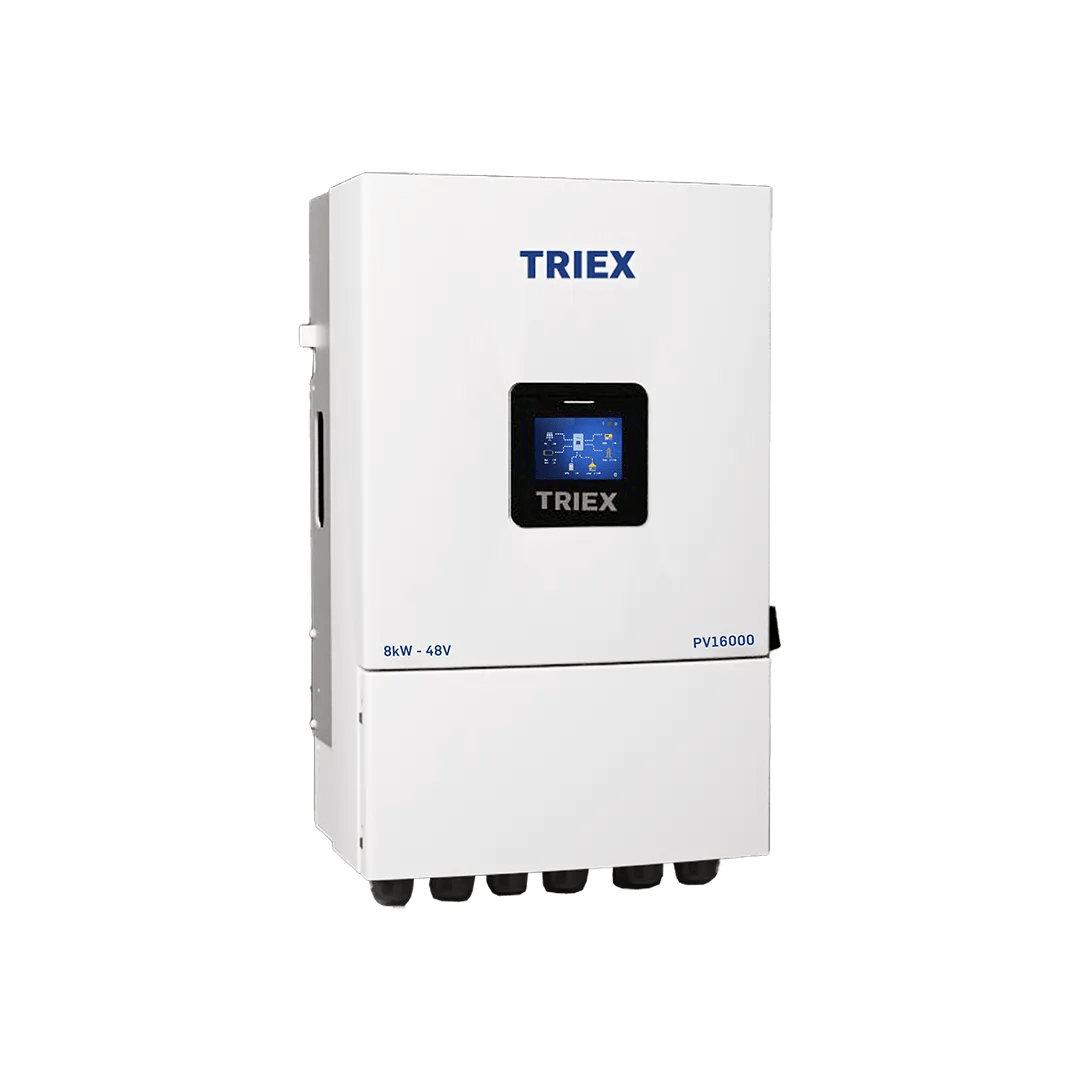

Triex 8kW, PV16000 (IP66)
Categories: Inverter, IP66 HYBRID INVERTERS
The Triex 8kW IP66 is a single phase hybrid LV inverter rated for outdoor installation and designed for large Pakistani homes where power demand is high and environmental conditions are demanding. With an IP66 ingress protection rating, it mounts directly on an exterior wall without any additional enclosure, handling Karachi’s coastal humidity, monsoon rain, rooftop dust, and extreme summer heat without any performance compromise.
At 97.7% maximum efficiency, the Triex 8kW IP66 is the most efficient inverter in the Triex hybrid lineup. On a standard 6-hour Karachi sun day, this efficiency advantage over 93% indoor inverters translates into approximately 280Wh more energy delivered daily to your home and battery bank. Over a full year, that difference adds up to PKR 4,000 to 6,000 in additional savings without adding a single extra solar panel.
The inverter accepts up to 16000Wp of solar input through dual MPPT trackers, each supporting up to 4 input strings with a 60V start-up voltage. This wide panel configuration flexibility allows larger rooftop arrays with multiple string orientations to connect to a single inverter without compromising harvest efficiency. The 99.80% MPPT efficiency means near-perfect solar energy extraction from early morning to late afternoon across all weather conditions.
The back-up switch time of less than 4ms is the fastest in the Triex lineup and among the fastest available in the Pakistani market. At 4ms, the transition from grid to battery is faster than one electrical cycle at Pakistan’s 50Hz frequency. Computers never restart, routers never disconnect, and ceiling fans never flicker during K-Electric or WAPDA load shedding.
With a maximum charge and discharge current of 190A, the Triex 8kW IP66 supports large LiFePO4 battery banks for extended backup duration. Built-in protection includes DC reverse polarity protection on both MPPT inputs, anti-islanding, Type II DC and AC surge protection, ground fault monitoring, residual leakage current detection, AFCI arc fault protection, and PV insulation resistance detection. The SolarCloud app provides full remote monitoring through RS485 and optional WiFi.
Product Description
Key Features
- IP66 Outdoor Rated: Completely dustproof and protected against powerful water jets from any direction, mounts directly on exterior walls without any additional enclosure or weatherproof cabinet
- 97.7% Maximum Efficiency: Highest efficiency in the Triex hybrid lineup, delivers approximately 280Wh more energy daily than 93% efficiency inverters on the same panel array
- 99.80% MPPT Efficiency: Near-perfect solar energy harvesting from 60V start-up voltage in early morning low-light conditions through peak afternoon generation
- 16000Wp Dual MPPT Solar Input: Accepts up to 16kW of solar panels with 4 input strings per MPPT tracker for maximum rooftop configuration flexibility
- Less Than 4ms Back-Up Switch Time: Fastest switching in the Triex lineup, computers never restart, routers never disconnect, and fans never flicker during load shedding
- 8kW Continuous Output: Powers two inverter ACs, refrigerator, full lighting, water pump, and office equipment simultaneously without overloading
- 190A Max Charge and Discharge Current: Supports large LiFePO4 battery banks for extended backup duration through long WAPDA and K-Electric outages
- Self-Adaption to BMS: Automatically adapts charging strategy to connected lithium battery BMS without manual configuration
- Integrated AFCI Arc Fault Protection: DC arc fault circuit interrupter detection protects the entire solar system from fire risk caused by arc faults in DC wiring
- Type II DC and AC Surge Protection: Built-in surge protection on both DC and AC sides guards against voltage spikes common on Pakistan’s electricity distribution network
- Ground Fault and Residual Leakage Detection: Advanced electrical safety monitoring protects both the system and the home from ground faults
- PV Insulation Resistance Detection: Continuous monitoring of solar panel insulation prevents ground faults before they cause system damage
- Anti-Backflow Protection: CT standard anti-backflow with optional meter for precise net metering control and grid export management
- SolarCloud App Monitoring: Real-time remote monitoring of solar generation, battery status, grid interaction, and home load from your smartphone
- Smart Load Dual Output Interface: Two independent AC output circuits for separating critical loads from non-critical loads in the same installation
- 24-Hour Intelligent Energy Management: Continuous smart energy routing between solar, battery, and grid to minimize K-Electric bills throughout the day and night
- -40°C to +60°C Operating Range: Extreme temperature tolerance handles Pakistan’s summer rooftop heat above 50°C and winter cold without performance loss
- 0% to 100% Humidity Tolerance: Full humidity range operation without condensation risk, critical for Karachi’s coastal and monsoon environment
- 5 Year Standard Warranty: Longest warranty in the Triex hybrid inverter lineup, backed by Triex Solar Team
Technical Specifications
| Specification | Triex 8kW IP66 PV16000 |
|---|---|
| Model | PV16000 |
| Rated Output Power | 8000W |
| Max Apparent Output Power | 8800kVA |
| Maximum PV Input Power | 16000Wp |
| Max Input Voltage | 550V |
| Rated Voltage | 370V |
| Start-Up Voltage | 60V |
| MPPT Voltage Range | 60V to 450V |
| Max Input Current | 32A per MPPT |
| Max Short Circuit Current | 40A per MPPT |
| MPPT Number | 2 |
| Max Input Strings per MPPT | 4 |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range | 40V to 60V |
| Max Charge/Discharge Current | 190A / 190A |
| BMS Communication | CAN, RS485 |
| Charging Strategy | Self-adaption to BMS |
| Rated Output Power (Grid Side) | 8000W |
| Max Rated Current at 230V | 34.8A |
| Max Output Current | 38.3A |
| Grid Voltage Range | 187V to 253V |
| Rated Grid Voltage | 220V / 230V |
| Rated Grid Frequency | 50Hz / 60Hz |
| Power Factor | 0.8 Leading to 0.8 Lagging |
| THDi | Less than 3% |
| Rated Output Power (Back-up) | 8000W |
| Max Output Power (Back-up) | 2 times rated power for 10 seconds |
| Back-Up Switch Time | Less than 4ms |
| Max Efficiency | 97.7% |
| EU Efficiency | 96.7% |
| BAT Charge/Discharge Max Efficiency | 95.3% / 93.9% |
| MPPT Efficiency | 99.80% |
| DC Reverse Polarity Protection | No |
| Anti-Islanding Protection | Yes |
| Short Circuit Protection | Yes |
| Output Over Current Protection | Yes |
| DC Surge Protection | Yes, Type II |
| AC Surge Protection | Yes, Type II |
| PV Insulation Resistance Detection | Yes |
| Ground Fault Monitoring | Yes |
| Residual Leakage Current Detection | Yes |
| Temperature Protection | Yes |
| AC Over Voltage Protection | Yes |
| DC Over Current Protection | Yes |
| PV Input Overvoltage Protection | Yes |
| Anti-Backflow | CT Standard, Meter Optional |
| Integrated AFCI | Yes |
| Ingress Protection | IP66 |
| Operating Temperature | -40°C to +60°C |
| Humidity | 0% to 100% |
| Self Consumption Night | Less than 20W |
| Max Operation Altitude | 4000m (Derating above 3000m) |
| Grid Connection Standard | IEC 61727, IEC 62116, IEC 61683 |
| Safety/EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| Display | LED, Bluetooth, App, Optional LCD |
| Communication | RS485, CAN, WiFi Optional, GPRS Optional, LAN Optional |
| DC Terminal | MC4 Connector |
| Battery Connection | Terminal |
| Standard Warranty | 5 Years |
| Dimensions (W x H x D) | 350 x 560 x 225mm |
| Weight | 26 kg |
Who Should Buy This
The Triex 8kW IP66 is the right choice for large Pakistani homes that need the highest efficiency outdoor hybrid inverter available in the Triex lineup. It is ideal for homes in DHA, Clifton, Bahria Town, and Gulistan-e-Jauhar with two or more inverter ACs, high general appliance loads, and rooftop or exterior wall installation requirements.
It is also the right choice for homeowners who want to maximize solar savings through superior conversion efficiency and are running larger panel arrays that benefit from the 16kW dual MPPT input and 4-string-per-tracker configuration flexibility.
If your home runs heavy loads, your installation location demands outdoor-rated protection, and you want the fastest switching speed and highest efficiency available in the Triex hybrid lineup, the Triex 8kW IP66 is the most capable hybrid inverter Triex offers.
Important Disclosure
The Triex 8kW IP66 does not include built-in battery reverse polarity protection. Always verify correct battery polarity using a multimeter before making any battery connection. Your installer must confirm polarity before tightening battery terminals.
Compatibility
The Triex 8kW IP66 uses a 48V battery system. Compatible Triex batteries include:
- Triex TXL-5.12 (51.2V, 5.12kWh, LiFePO4) ✅
- Triex TXL-16.07 (51.2V, 16.07kWh, LiFePO4) ✅
Not compatible with 12V or 24V batteries including Triex TXL-12V-100 and TXL-24V-100.
Warranty
5 years standard warranty. Longest warranty in the Triex hybrid inverter lineup. Contact Triex Solar Team for warranty registration and after-sales support.
