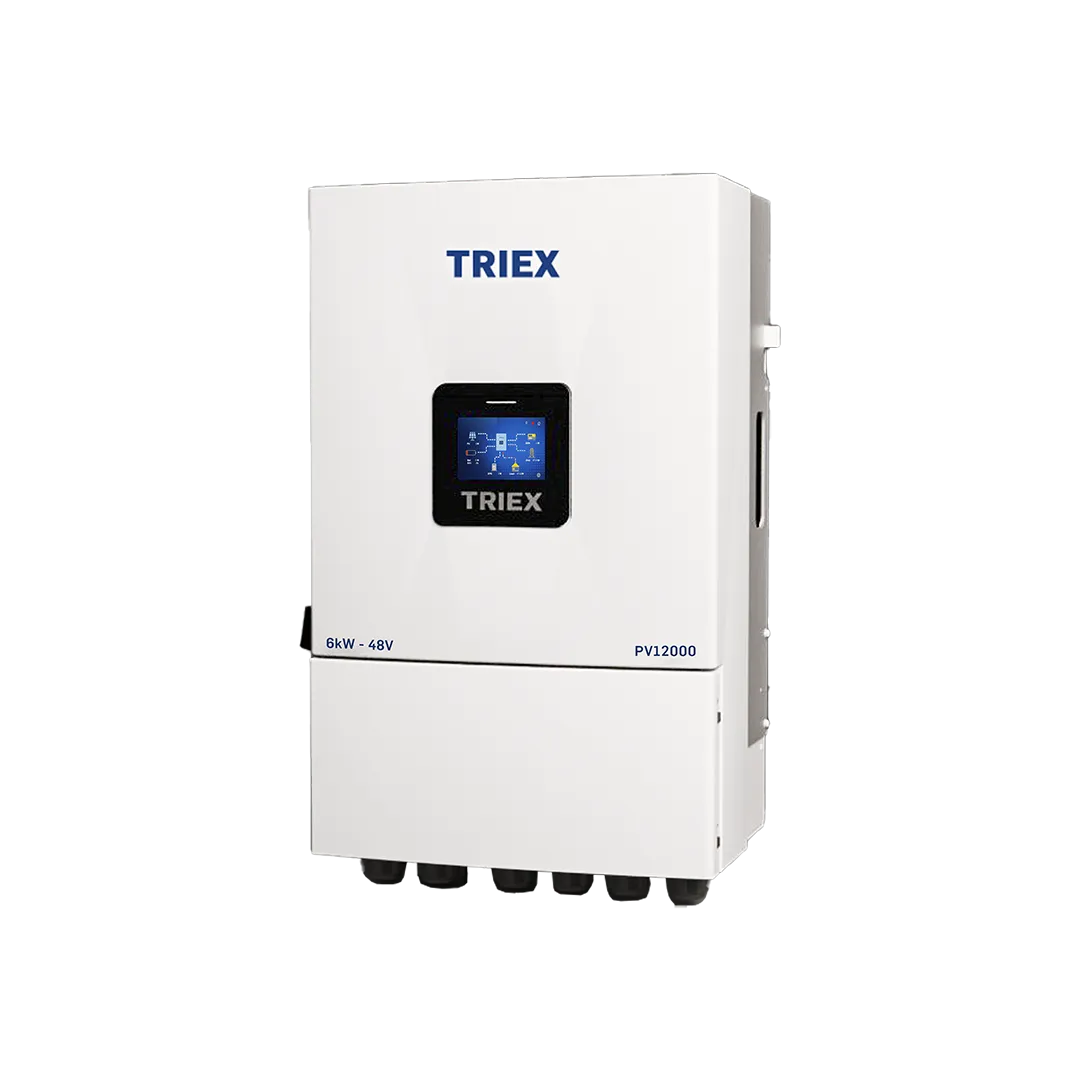

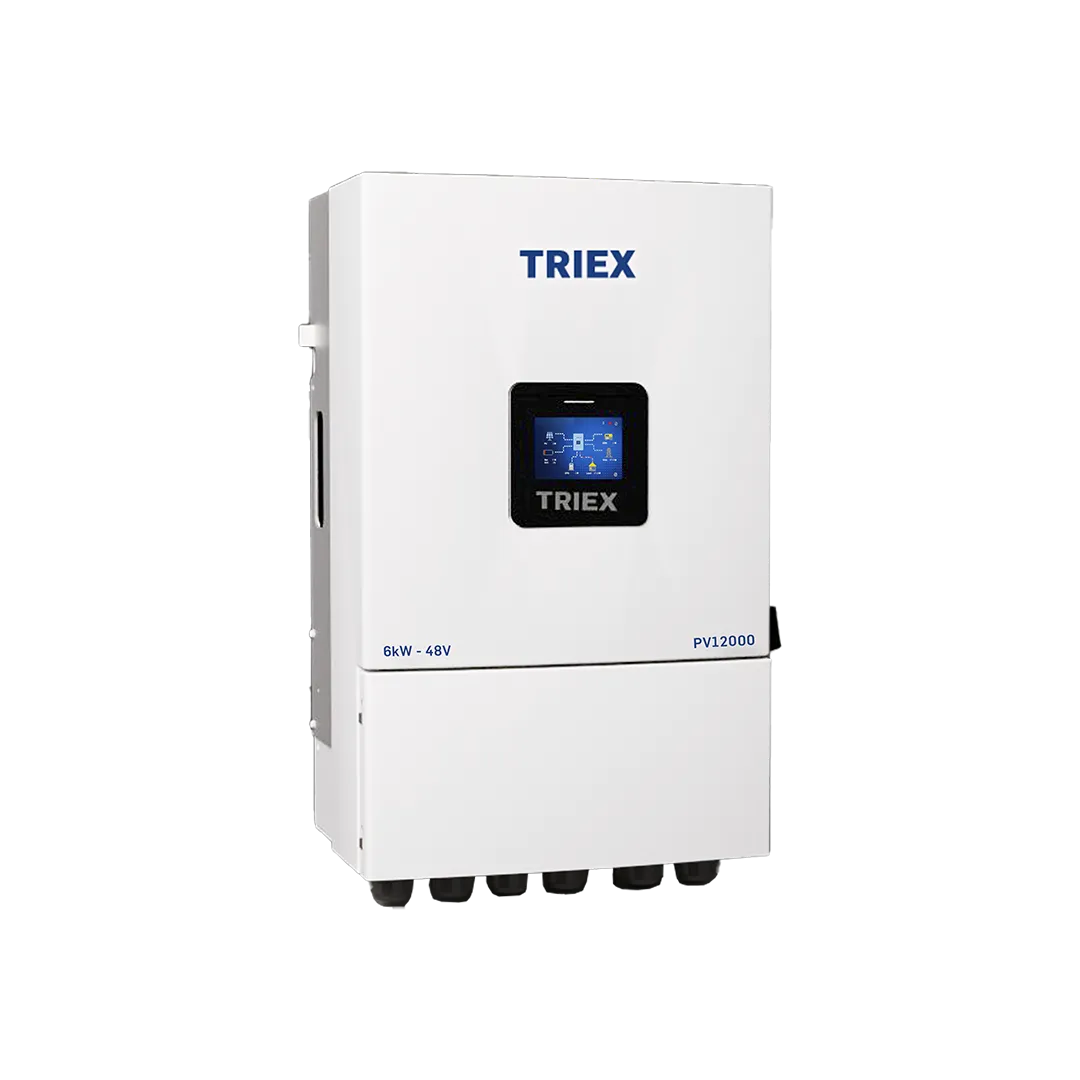

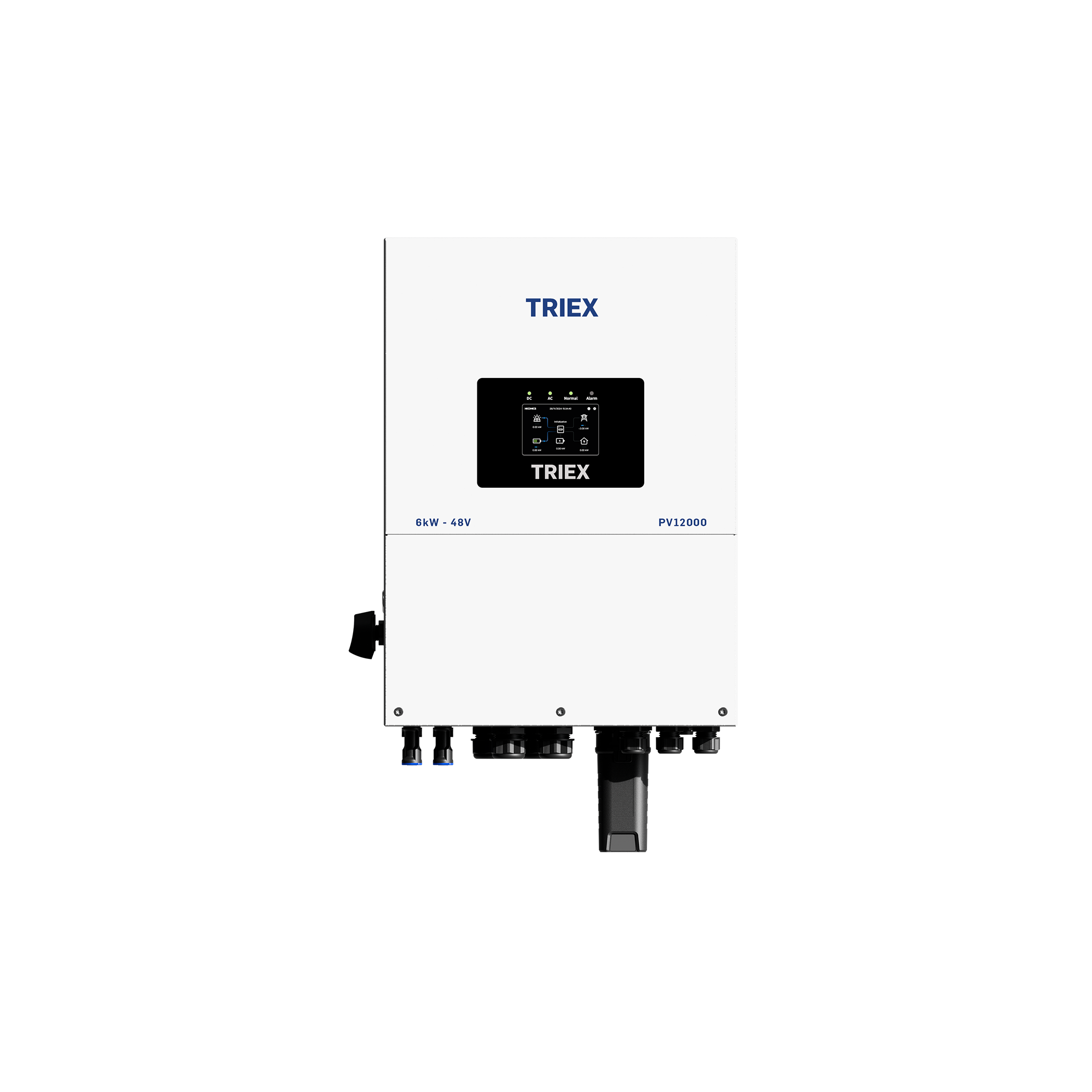

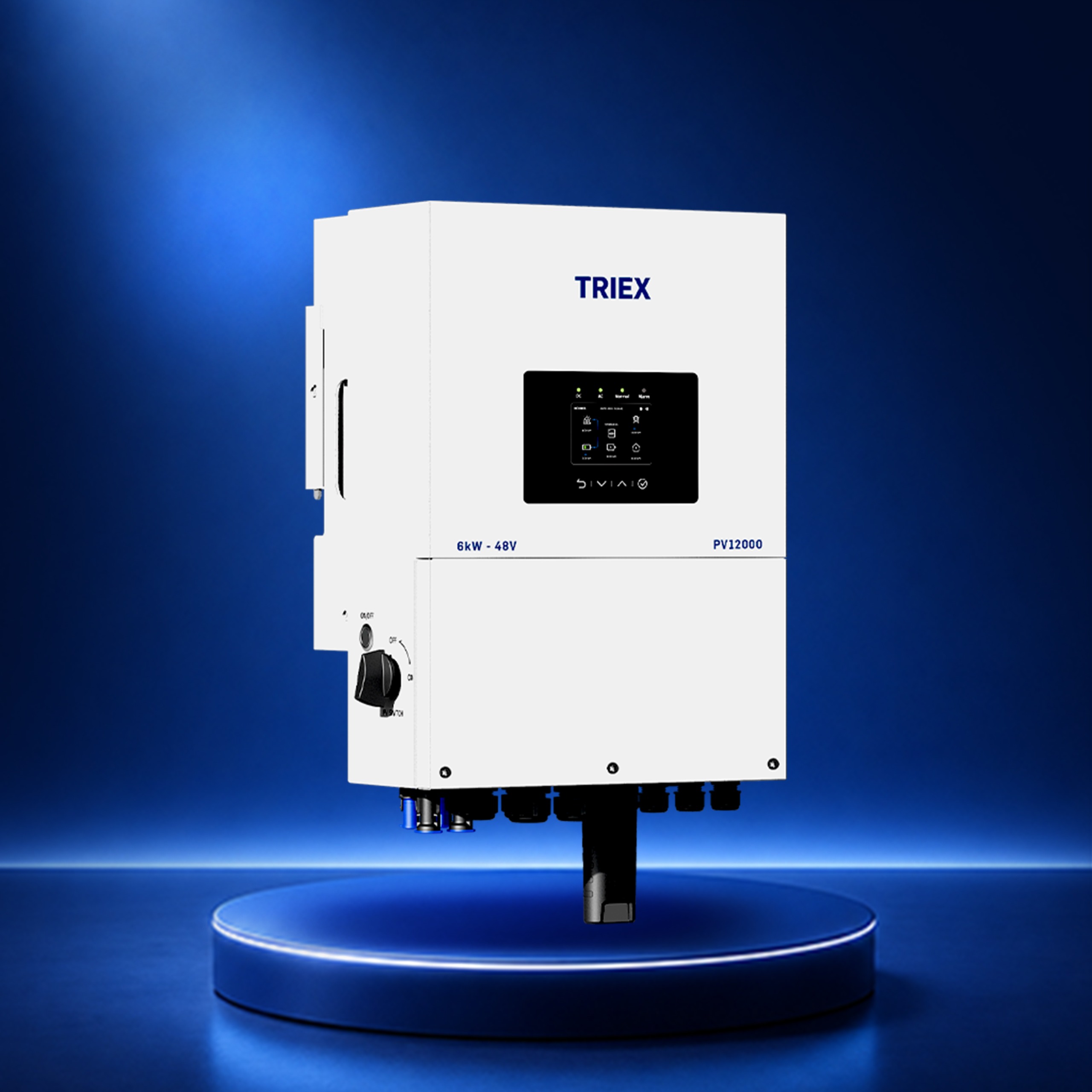

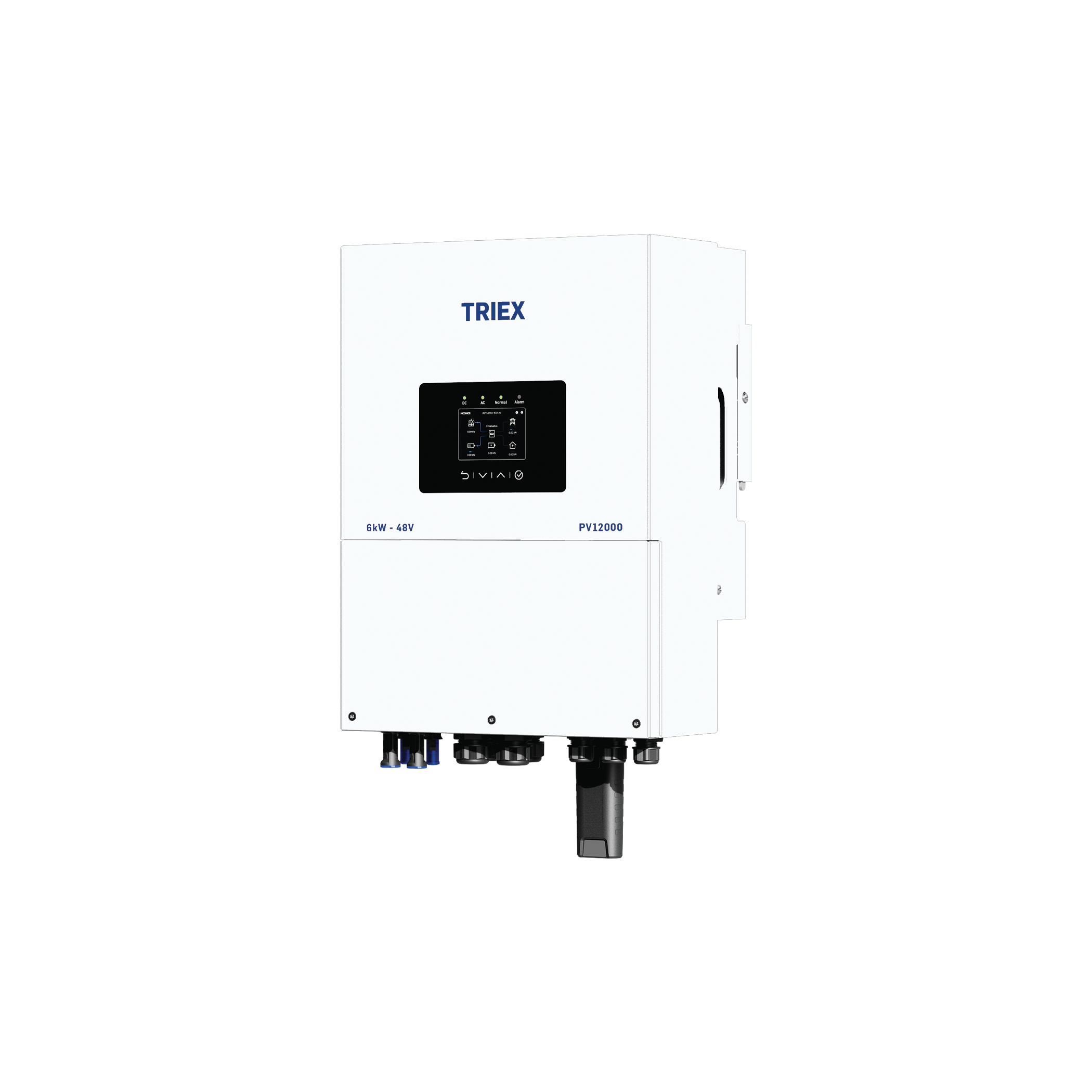

Triex 6kW, PV12000 (IP66)
Categories: Inverter, IP66 HYBRID INVERTERS
The Triex 6kW IP66 is a single phase hybrid LV inverter rated for outdoor installation in the most demanding environmental conditions. With an IP66 ingress protection rating, it is completely dustproof and protected against powerful water jets from any direction, making it the right choice for Pakistani homes where the inverter must be mounted on an exterior wall, rooftop enclosure, or any location exposed to Karachi’s coastal humidity, monsoon rain, and extreme summer heat.
At 97.3% maximum efficiency and 99.9% MPPT efficiency, the Triex 6kW IP66 extracts more energy from your solar panels than most inverters in its class. On a standard 6-hour Karachi sun day, this efficiency advantage translates into measurably more energy delivered to your home and battery bank, reducing your K-Electric bill and extending battery backup time without adding more panels.
The inverter accepts up to 12000Wp of solar input through dual MPPT trackers, each with a 125V start-up voltage that allows solar harvesting to begin in early morning low-light conditions. The back-up switch time of less than 10ms means your computers, routers, and sensitive electronics transition from grid to battery without any perceptible interruption during K-Electric or WAPDA load shedding.
Built-in protection includes DC reverse polarity protection, anti-islanding protection, Type II DC and AC surge protection, ground fault monitoring, residual leakage current detection, PV insulation resistance detection, and integrated AFCI arc fault protection. The SolarCloud app provides real-time remote monitoring through CAN and RS485 communication, with optional WiFi connectivity for smartphone access anywhere.
For Pakistani homeowners in Karachi, DHA, Clifton, and coastal areas where humidity, salt air, and monsoon exposure make indoor-rated inverters a liability, the Triex 6kW IP66 is the most weatherproof and efficient hybrid option in the Triex lineup.
Product Description
Key Features
- IP66 Outdoor Rated: Completely dustproof and protected against powerful water jets from any direction, suitable for exterior wall mounting without any additional enclosure
- 97.3% Maximum Efficiency: Industry-leading conversion efficiency delivers more energy from every solar panel to your home and battery, reducing K-Electric bills significantly
- 99.9% MPPT Efficiency: Near-perfect solar energy harvesting from early morning to late afternoon, maximizing daily solar output across all panel configurations
- 12000Wp Dual MPPT Solar Input: Two independent MPPT trackers with 125V start-up voltage begin harvesting solar energy in early morning low-light conditions
- Less Than 10ms Back-Up Switch Time: Computers, routers, and sensitive electronics transition from grid to battery without any perceptible interruption during load shedding
- 6kW Continuous Output: Handles fans, lights, refrigerator, television, router, inverter AC, and multiple simultaneous loads within rated capacity
- 135A Max Charge and Discharge Current: High battery charge and discharge current supports large LiFePO4 battery banks for extended backup duration
- Self-Adaption to BMS: Automatically adapts charging strategy to connected lithium battery BMS without manual configuration
- Integrated AFCI Arc Fault Protection: DC arc fault circuit interrupter detection protects the entire solar system from fire risk caused by arc faults in DC wiring
- Type II DC and AC Surge Protection: Built-in surge protection on both DC and AC sides guards against voltage spikes common on Pakistan’s electricity network
- Ground Fault and Residual Leakage Detection: Advanced safety monitoring protects both the system and the home from electrical faults
- PV Insulation Resistance Detection: Continuous monitoring of solar panel insulation prevents ground faults before they cause system damage
- Anti-Backflow Protection: CT standard anti-backflow with optional meter for precise net metering and export control
- SolarCloud App Monitoring: Real-time remote monitoring of solar input, battery status, grid interaction, and load data from your smartphone
- Smart Load Dual Output Interface: Two independent output circuits for separating critical loads from non-critical loads
- 24-Hour Intelligent Energy Management: Continuous smart energy routing between solar, battery, and grid to minimize electricity costs throughout the day and night
- -40°C to +60°C Operating Range: Extreme temperature tolerance handles Pakistan’s summer rooftop heat and winter cold without performance loss
- 0% to 100% Humidity Tolerance: Full humidity range operation without condensation risk, critical for Karachi’s coastal environment
- 5 Year Standard Warranty: Longest warranty in the Triex hybrid inverter lineup, backed by Triex Solar Team
Technical Specifications
| Specification | Triex 6kW IP66 PV12000 |
|---|---|
| Model | PV12000 |
| Rated Output Power | 6000W |
| Max Apparent Output Power | 6600kVA |
| Maximum PV Input Power | 12000Wp |
| Max Input Voltage | 500V |
| Rated Voltage | 370V |
| Start-Up Voltage | 125V |
| MPPT Voltage Range | 125V to 425V |
| Max Input Current | 18A per MPPT |
| Max Short Circuit Current | 27A per MPPT |
| MPPT Number | 2 |
| Max Input Strings | 1 per MPPT |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range | 40V to 60V |
| Max Charge/Discharge Current | 135A / 135A |
| BMS Communication | CAN, RS485 |
| Charging Strategy | Self-adaption to BMS |
| Rated Output Power (Grid Side) | 6000W |
| Max Rated Current at 230V | 26A |
| Grid Voltage Range | 154V to 276V |
| Rated Grid Voltage | 220V / 230V |
| Power Factor | 1 (-0.8 leading to 0.8 lagging) |
| THDi | Less than 3% at Rated Power |
| Rated Output Power (Back-up) | 6000VA |
| Max Output Power (Back-up) | 6600VA |
| Back-Up Switch Time | Less than 10ms |
| Max Efficiency | 97.3% |
| EU Efficiency | 96.2% |
| BAT Charge/Discharge Max Efficiency | PV to BAT 95%, AC to BAT 94.5%, BAT to AC 94.5% |
| MPPT Efficiency | 99.9% |
| DC Reverse Polarity Protection | Yes |
| Anti-Islanding Protection | Yes |
| Short Circuit Protection | Yes |
| Output Over Current Protection | Yes |
| DC Surge Protection | Yes, Type II |
| AC Surge Protection | Yes, Type II |
| PV Insulation Resistance Detection | Yes |
| Ground Fault Monitoring | Yes |
| Residual Leakage Current Detection | Yes |
| Temperature Protection | Yes |
| AC Over Voltage Protection | Yes |
| DC Over Current Protection | Yes |
| PV Input Overvoltage Protection | Yes |
| Anti-Backflow | CT Standard, Meter Optional |
| Integrated AFCI | Optional |
| Ingress Protection | IP66 |
| Operating Temperature | -20°C to +60°C |
| Humidity | 0% to 100% |
| Grid Connection Standard | IEC 61727, IEC 62116, IEC 61683 |
| Safety/EMC Standard | IEC/EN 62109-1 and 2, IEC 61000-6-1, IEC 61000-6-3 |
| Display | LED, App, LCD |
| Communication | CAN, RS485, WiFi |
| DC Terminal | MC4 Connector |
| Battery Connection | Terminal Block |
| Standard Warranty | 5 Years |
| Dimensions (W x H x D) | 228 x 470 x 340mm |
| Weight | 19 kg |
Who Should Buy This
The Triex 6kW IP66 is the right choice for Pakistani homeowners who need a hybrid inverter that can be mounted outdoors without any additional weatherproofing. It is ideal for homes in Karachi and other coastal areas where humidity, salt air, and monsoon rain make IP21 indoor-rated inverters unsuitable for exterior installation, and for any home where rooftop or exterior wall mounting is the only practical option.
If your priority is maximum solar efficiency, outdoor durability, and the longest available warranty in the Triex hybrid lineup, the 6kW IP66 delivers all three. It is particularly well suited for medium-sized homes running one inverter AC, refrigerator, fans, and lights through daily K-Electric load shedding.
Important Disclosure
The Triex 6kW IP66 does not include built-in battery reverse polarity protection. Always verify correct battery polarity using a multimeter before making any battery connection. Your installer must confirm polarity before tightening battery terminals.
Compatibility
The Triex 6kW IP66 uses a 48V battery system. Compatible Triex batteries include:
- Triex TXL-5.12 (51.2V, 5.12kWh, LiFePO4) ✅
- Triex TXL-16.07 (51.2V, 16.07kWh, LiFePO4) ✅
Not compatible with 12V or 24V batteries including Triex TXL-12V-100 and TXL-24V-100.
Warranty
5 years standard warranty. Longest warranty in the Triex hybrid inverter lineup. Contact Triex Solar Team for warranty registration and after-sales support.
