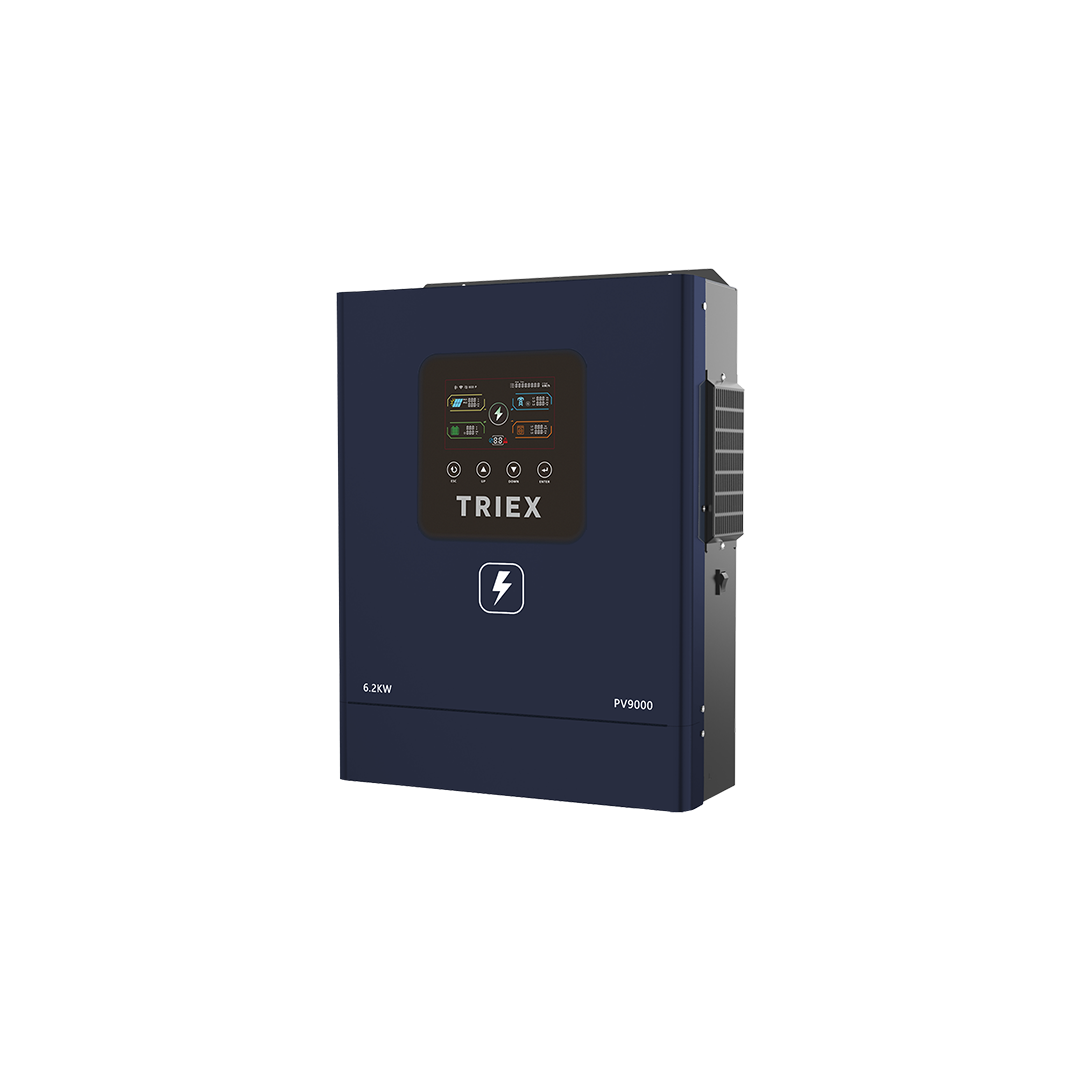

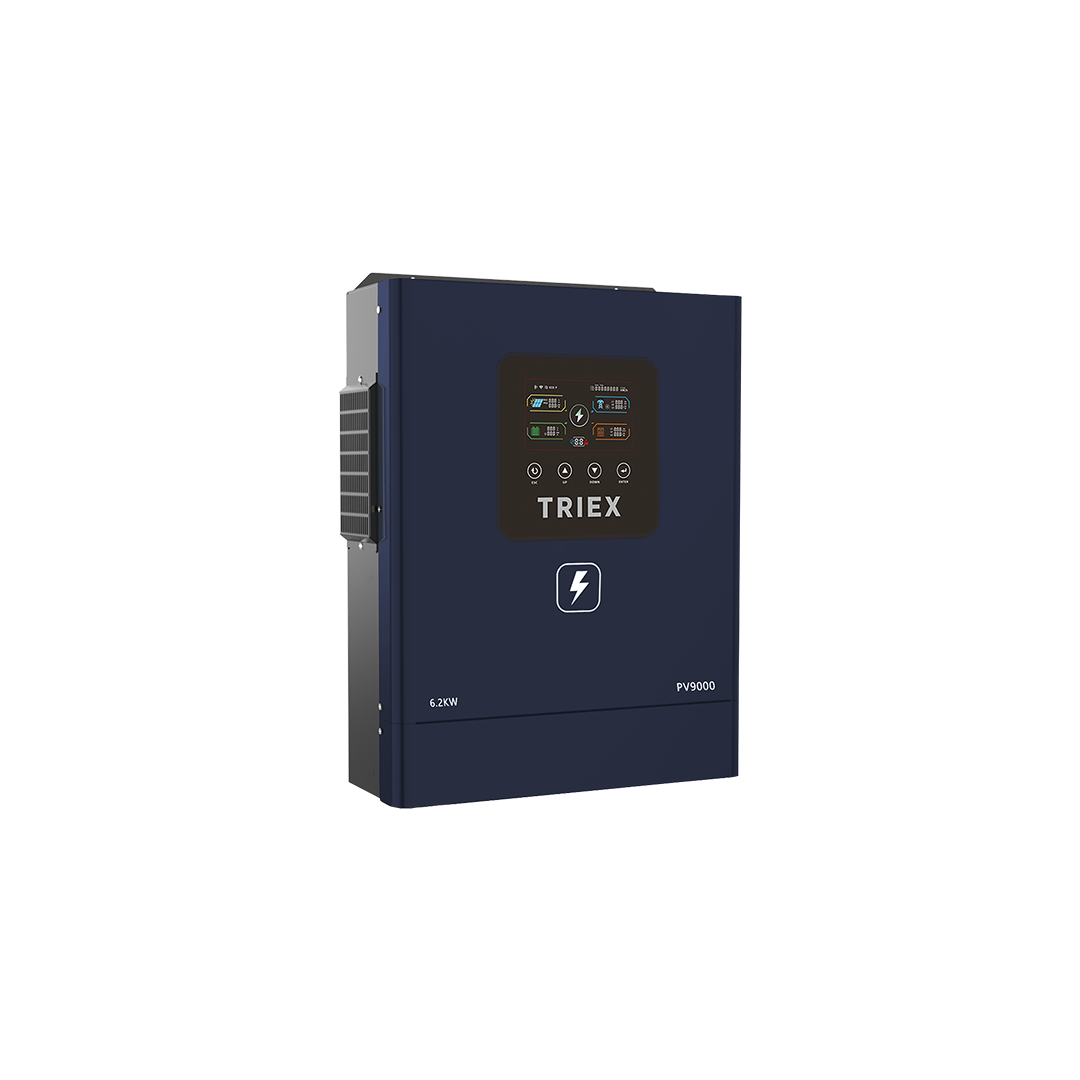

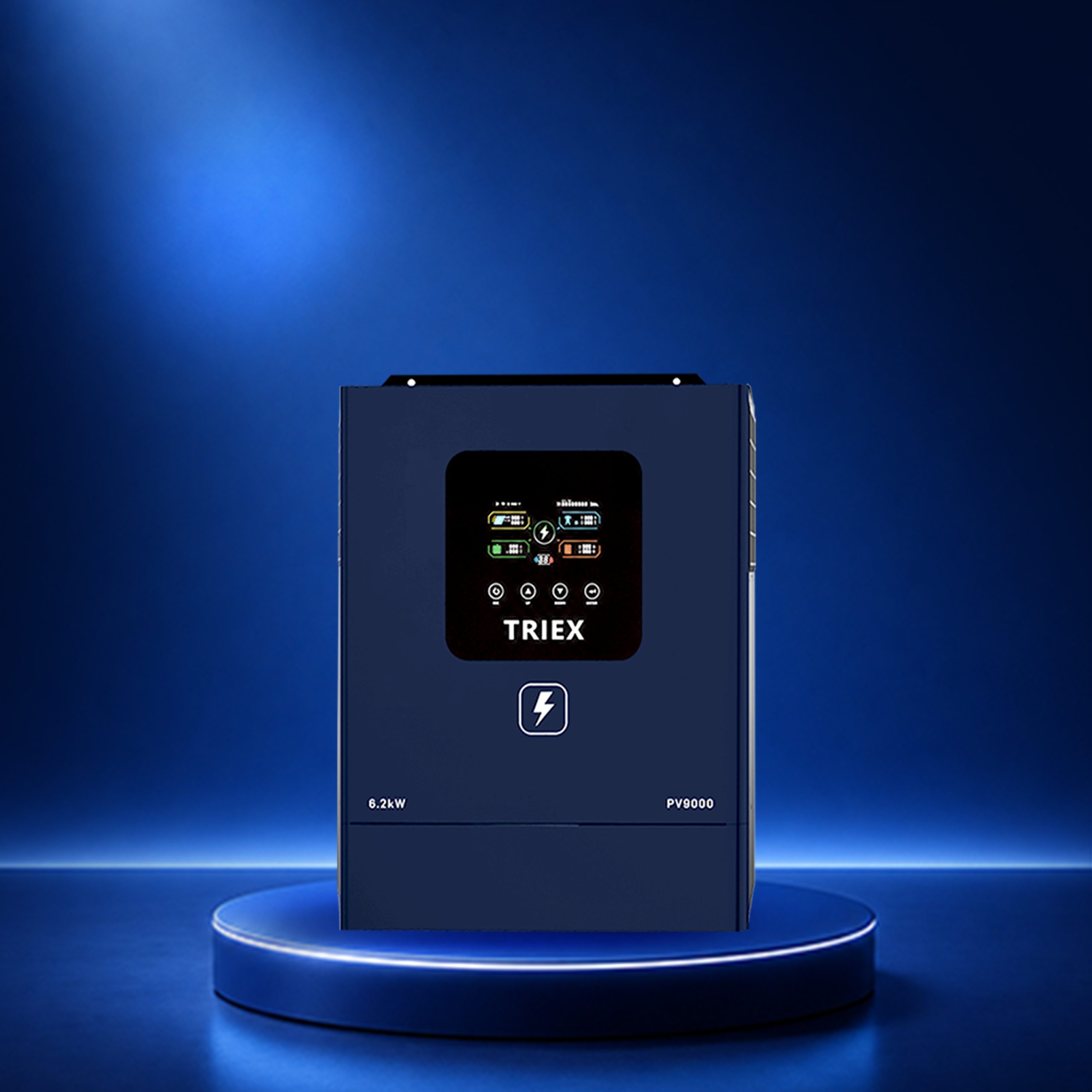

TX-ECO-6200
The Triex TX-ECO-6200 is a 6.2kW pure sine wave off-grid solar inverter built for Pakistani homes and small businesses that need reliable power without depending on the grid. Whether you are in a WAPDA area with long load shedding or a location where grid connection is not available, this inverter keeps your essential appliances running continuously through solar panels and a battery bank.
With 9000W of solar input capacity and an advanced MPPT charge controller ranging from 60V to 500VDC, the TX-ECO-6200 harvests maximum solar energy throughout the day, even in early morning low-light conditions. The dual output design allows you to run two separate circuits simultaneously, making it practical for homes that want to separate critical loads from non-critical ones.
The inverter supports lithium battery communication through RS485, which means it works seamlessly with LiFePO4 batteries and manages charging and discharging automatically without manual adjustment. For Pakistani homes looking to move away from expensive diesel generators or unreliable grid supply, the TX-ECO-6200 offers a clean, silent, and maintenance-free alternative.
Product Description
Key Features
- 6.2kW Continuous Output: Handles fans, lights, refrigerator, television, router, and selective heavy loads simultaneously without overloading
- 9000W Solar Input Capacity: Accepts up to 9kW of solar panels for maximum daytime generation and faster battery recharging
- Advanced MPPT Solar Charging: 60V to 500VDC voltage range starts harvesting solar energy from early morning, maximizing daily output
- Pure Sine Wave Output: Delivers clean, stable power safe for sensitive electronics including computers, medical equipment, and inverter ACs
- Dual AC Output: Two independent output circuits let you separate priority loads from non-priority loads in the same home
- Lithium Battery Compatible: RS485 communication with LiFePO4 batteries for automatic BMS integration and extended battery life
- Runs Directly on Solar: Can power loads directly from solar panels without needing battery or grid connection during daytime
- Fast 10ms Transfer Time: For personal computers, 20ms for home appliances, keeping devices running smoothly during source switching
- 96% Peak Efficiency: High PV to inverter conversion efficiency reduces energy waste and maximizes solar savings
- Colorful LCD with RGB Display: Clear real-time monitoring of solar input, battery status, and load output at a glance
- Wide Input Voltage Tolerance: Accepts 90V to 280VAC input, handling Pakistan’s unstable grid voltage without tripping
- IP21 Rated: Suitable for indoor installation in a covered, ventilated utility room or meter cabinet
Technical Specifications
| Specification | TX-ECO-6200 |
|---|---|
| Model | TX-ECO-6200 |
| Rated Output Power | 6200VA / 6200W |
| Maximum PV Input Power | 9000W |
| PV MPPT Voltage Range | 60VDC to 500VDC |
| Max Solar Input Current | 27A |
| Max Solar Charge Current | 120A |
| Max AC Charge Current | 120A |
| Battery Voltage | 48VDC |
| Surge Power | 12400VA |
| Transfer Time | 10ms (PC), 20ms (Home Appliances) |
| Peak Efficiency (PV to INV) | 96% |
| Output Waveform | Pure Sine Wave |
| Dual Output | Yes |
| Parallel Capability | No |
| Lithium Battery Communication | Yes (RS485) |
| WiFi | Optional |
| Display | Colorful LCD + RGB Light |
| Communication Interface | RS485, RS232, RJ45 |
| Operating Temperature | -10°C to 50°C |
| Humidity | 5% to 95% Non-Condensing |
| Ingress Protection | IP21 |
| Dimensions (D x W x H) | 371.8 x 342 x 116.5mm |
| Net Weight | 9 kg |
Who Should Buy This
The TX-ECO-6200 is the right choice for Pakistani homeowners and small business owners who want complete independence from load shedding without relying on the grid. It is ideal for homes in WAPDA areas with 6 to 10 hours of daily outages, rural properties without stable grid access, and small offices or shops that need uninterrupted power for computers, fans, lights, and refrigeration.
If your priority is solar-first operation with a strong battery backup and you do not need net metering or grid export, the TX-ECO-6200 delivers reliable, clean power at a practical capacity for medium-sized Pakistani homes.
Warranty
2 plus 2 years standard warranty. Contact Triex Solar Team for warranty registration and after-sales support.
