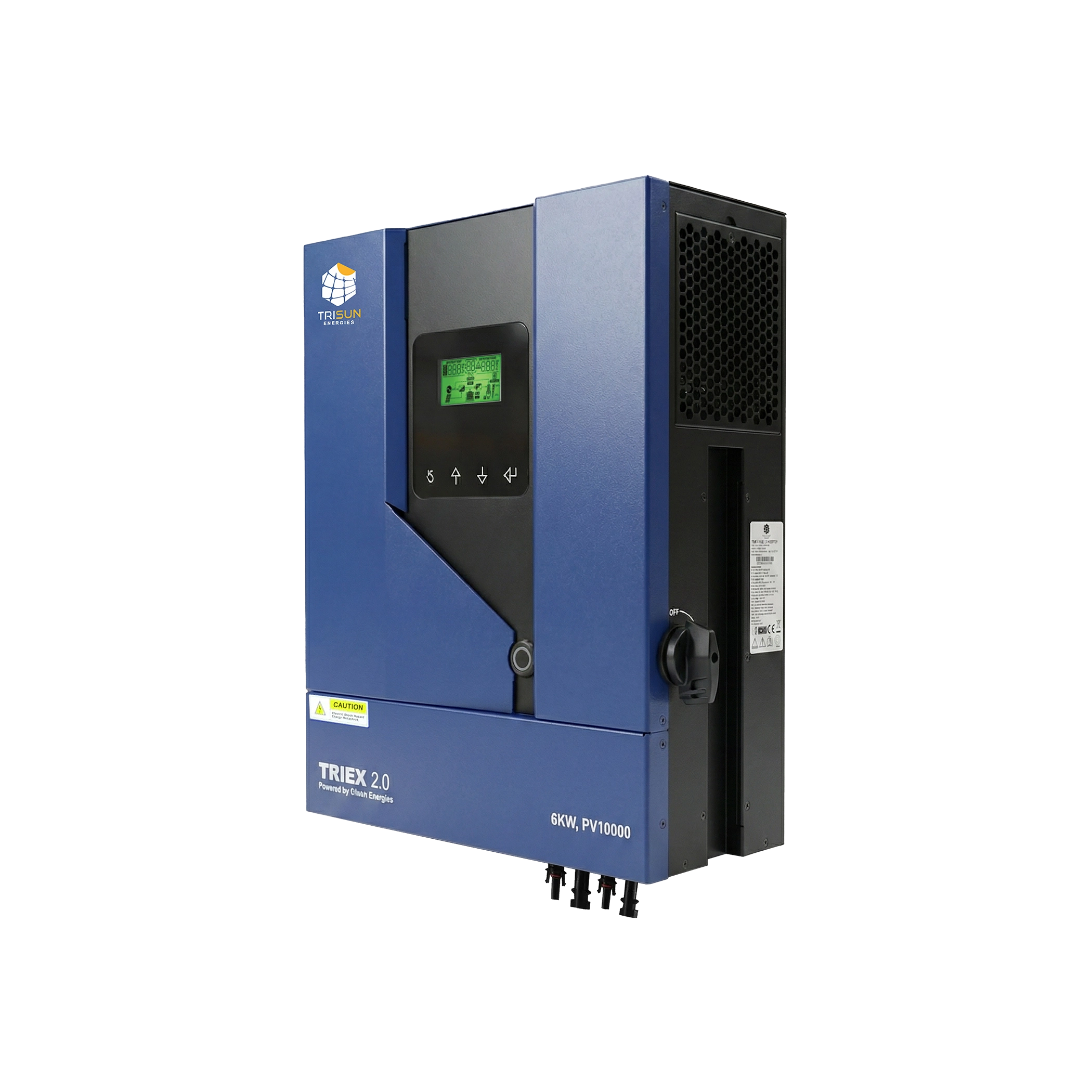

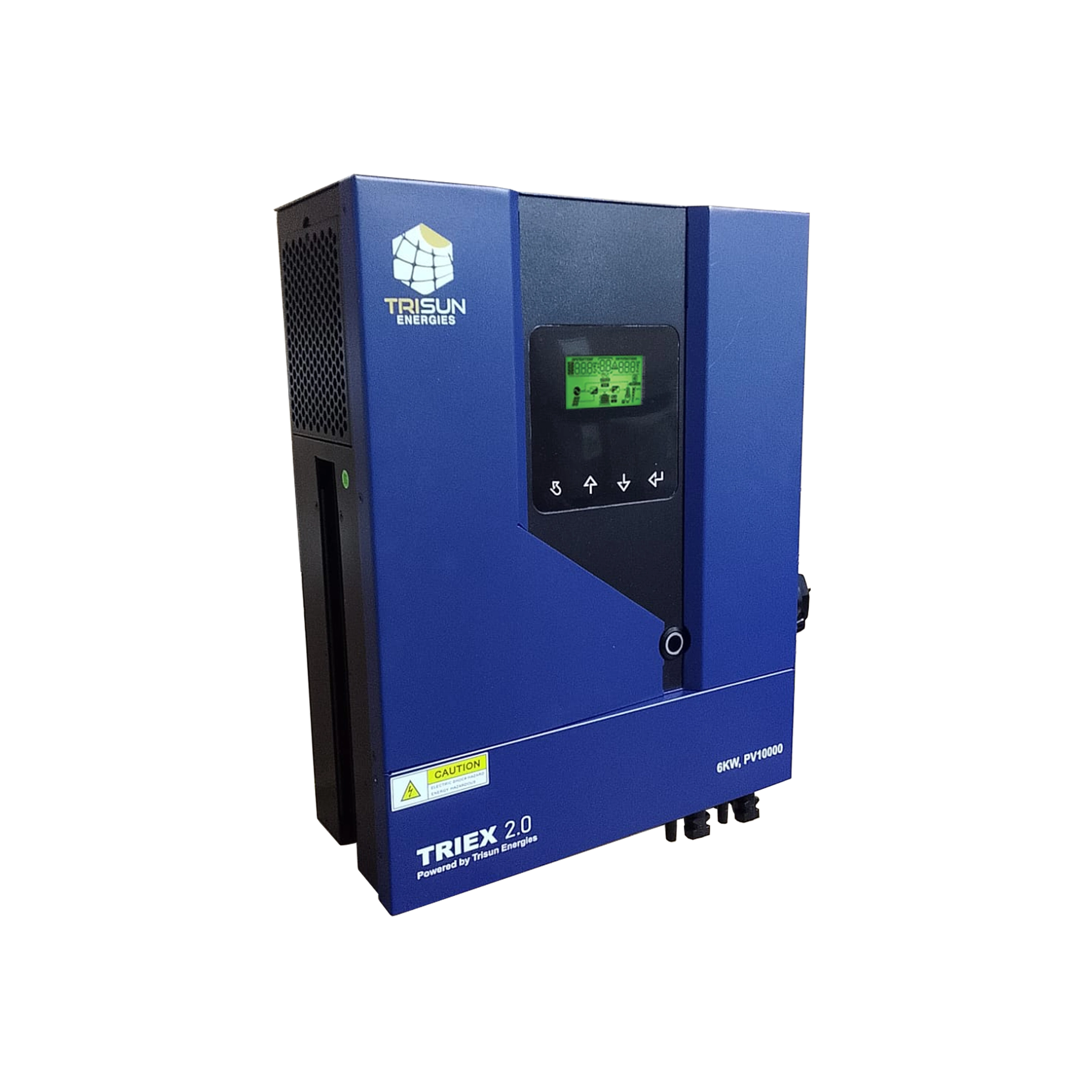

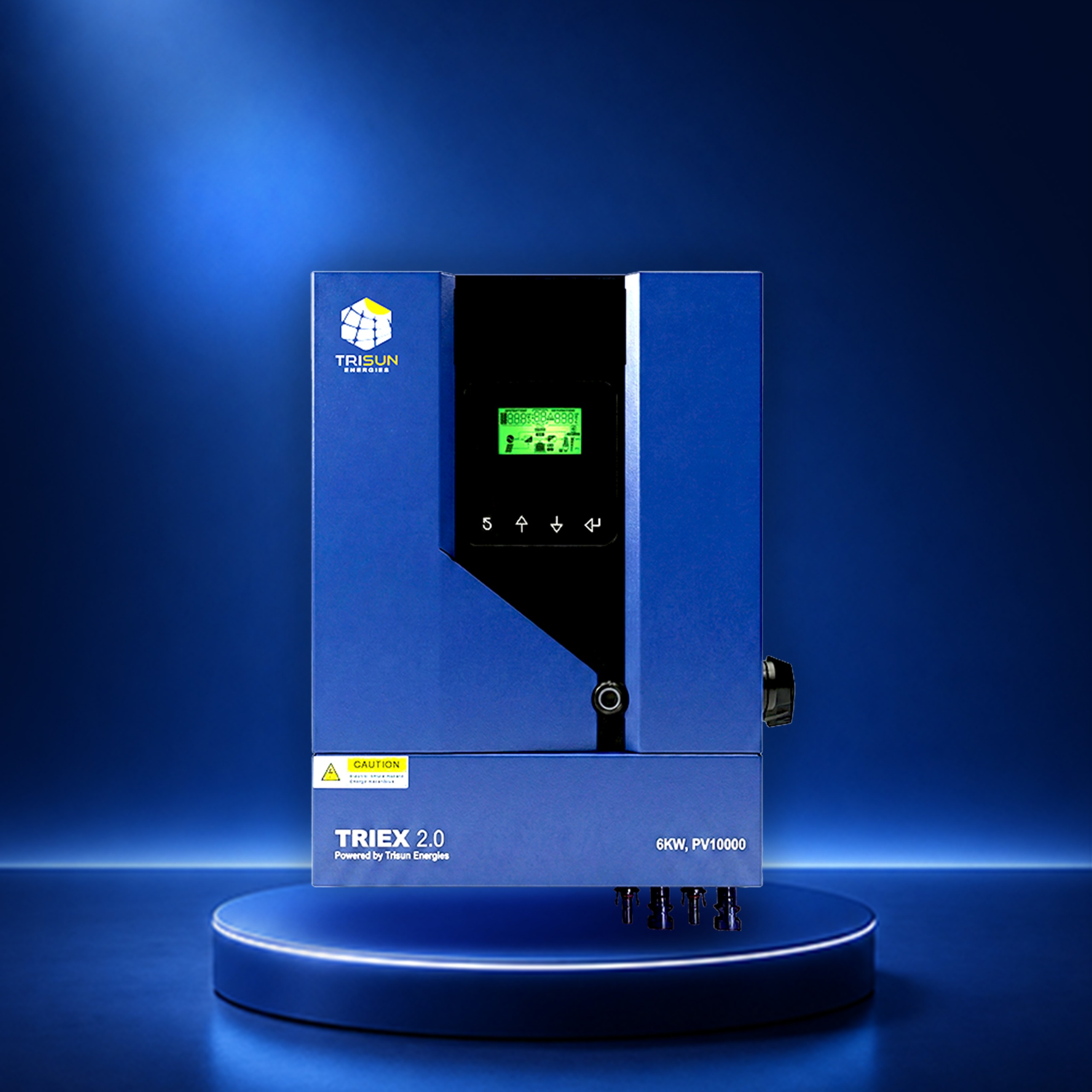

Axpert VM II ELITE 6KP
Categories: Inverter, OFF GRID INVERTERS
The Triex Axpert VM II Elite 6KP is a 6kW pure sine wave off-grid solar inverter built for residential and small commercial installations across Pakistan where grid independence is the primary goal. With 10000W of solar input capacity and an MPPT voltage range of 60V to 450VDC, it harvests maximum solar energy from early morning to late afternoon, keeping battery banks fully charged and homes powered through the longest WAPDA and K-Electric outages.
One of the most important features of the Axpert VM II Elite 6KP is its built-in true battery reverse polarity protection. In Pakistani installations where many systems are connected by technicians without structured solar safety training, a single polarity mistake can permanently destroy an inverter. The Axpert VM II Elite 6KP protects against this, blocking reverse current before it reaches the internal components and saving the system from an otherwise permanent failure.
The inverter includes a built-in pre-charge circuit to reduce inrush current during startup, which protects both the inverter and the connected battery bank from the stress of sudden high current demand. Combined with a built-in BMS communication port for RS485, it works seamlessly with LiFePO4 batteries for fully automatic charge and discharge management.
The dual input and output design, smart energy management, and low noise operation make the Axpert VM II Elite 6KP a strong choice for homes that need clean, silent, continuous power from solar and battery, completely independent of grid availability.
Product Description
Key Features
- 6kW Continuous Output: Handles fans, lights, refrigerator, television, router, inverter AC, and multiple simultaneous loads within rated capacity
- 10000W Solar Input Capacity: Accepts up to 10kW of solar panels for strong daytime generation and rapid battery recharging even in partially cloudy conditions
- Advanced MPPT Solar Charging: 60V to 450VDC MPPT range starts harvesting solar energy from early morning low-light conditions, maximizing daily output
- True Battery Reverse Polarity Protection: Built-in protection blocks reverse current before it damages internal components, critical for Pakistani installations where polarity mistakes are a common cause of inverter failure
- Built-In Pre-Charge Circuit: Reduces inrush current during battery connection and system startup, protecting both the inverter and battery bank from startup stress
- Pure Sine Wave Output: Delivers clean, stable power safe for sensitive electronics including computers, medical equipment, and inverter ACs
- Built-In BMS Communication Port: RS485 port for seamless LiFePO4 battery integration and automatic charge management
- Dual Input and Output Design: Smart energy management handles two independent AC power sources and two output circuits simultaneously
- Low Noise and No Load Consumption: Silent operation with minimal standby power draw, ideal for bedrooms, home offices, and quiet environments
- Fast 10ms Transfer Time: For personal computers, 20ms for home appliances, keeping devices running smoothly during source switching
- 93% Peak Efficiency: High battery to inverter conversion efficiency reduces energy waste during backup operation
- Built-In WiFi for Mobile Monitoring: Real-time monitoring of solar input, battery status, and load output from your smartphone
- Wide Input Voltage Tolerance: Accepts 90V to 280VAC input, managing Pakistan’s unstable grid voltage without unnecessary tripping
- IP21 Rated: Suitable for indoor installation in a covered, ventilated utility room or meter cabinet
Technical Specifications
| Specification | Axpert VM II Elite 6KP |
|---|---|
| Model | Axpert VM II Elite 6KP |
| Rated Output Power | 6000VA / 6000W |
| Maximum PV Input Power | 10000W |
| PV MPPT Voltage Range | 60VDC to 450VDC |
| Max PV Array Open Circuit Voltage | 500VDC |
| Max Solar Input Current | 27A |
| Max Solar Charge Current | 120A |
| Max AC Charge Current | 100A |
| Battery Voltage | 48VDC |
| Surge Power | 12000VA |
| Transfer Time | 10ms (PC), 20ms (Home Appliances) |
| Peak Efficiency (PV to INV) | 93% |
| Output Waveform | Pure Sine Wave |
| Battery Reverse Polarity Protection | Yes |
| Built-In Pre-Charge Circuit | Yes |
| BMS Communication | Yes (RS485) |
| Built-In WiFi | Yes |
| Low Noise and No Load Consumption | Yes |
| Parallel Capability | No |
| Grid Export | No |
| Display | LCD |
| Communication Interface | RS232, RS485, CAN, WiFi |
| Operating Temperature | -10°C to 50°C |
| Humidity | 5% to 95% Non-Condensing |
| Ingress Protection | IP21 |
| Dimensions (D x W x H) | 144 x 348 x 446mm |
| Net Weight | 12.5 kg |
Who Should Buy This
The Axpert VM II Elite 6KP is the right choice for Pakistani homeowners and small business owners who want a robust, protection-rich off-grid solar inverter for daily load shedding backup. It is ideal for homes in WAPDA areas with 6 to 12 hours of daily outages, rural properties without stable grid access, and anyone who has previously experienced inverter damage from installation mistakes and wants built-in protection against those failures.
The battery reverse polarity protection and pre-charge circuit make it particularly well suited for installations where the technician may not have advanced solar training, adding a critical safety layer that many competing inverters in this price range do not include.
Compatibility
The Axpert VM II Elite 6KP uses a 48V battery system. Compatible Triex batteries include:
- Triex TXL-5.12 (51.2V, 5.12kWh, LiFePO4) ✅
- Triex TXL-16.07 (51.2V, 16.07kWh, LiFePO4) ✅
Not compatible with 12V or 24V batteries including Triex TXL-12V-100 and TXL-24V-100. This inverter does not support grid export or net metering.
Warranty
2 plus 2 years standard warranty. Contact Triex Solar Team for warranty registration and after-sales support.
